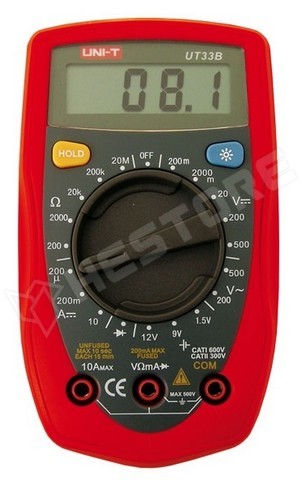

UT-33 B (UNI-T)
Digitális multiméter
SPECIFICATION:
DC Voltage: 200mV / 2000mV / 20V / 200V / 500V
- best accuracy: +/- (0.5%+2)
AC Voltage: 200V / 500V
- best accuracy: +/- (1.2%+10)
DC Current: 200µA / 200mA / 10A
- best accuracy: +/- (1%+2)
Resistance: 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm
- best accuracy: +/- (0.8%+2)
SPECIAL FUNCTIONS:
Battery test: 1.5V / 9V / 12V +/- (2.5%+2)
Diode
Data hold
Low battery display
Input impedance for DC Voltage Measurement: 10 MOhm
Display backlight
Max. display 1999 (48 x 16mm)
GENERAL CHARACTERISTICS:
Power: 9V bat. (6F22)
Product size: 130 x 73.5 x 35mm
Product weight: 156g
DC Voltage: 200mV / 2000mV / 20V / 200V / 500V
- best accuracy: +/- (0.5%+2)
AC Voltage: 200V / 500V
- best accuracy: +/- (1.2%+10)
DC Current: 200µA / 200mA / 10A
- best accuracy: +/- (1%+2)
Resistance: 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm
- best accuracy: +/- (0.8%+2)
SPECIAL FUNCTIONS:
Battery test: 1.5V / 9V / 12V +/- (2.5%+2)
Diode
Data hold
Low battery display
Input impedance for DC Voltage Measurement: 10 MOhm
Display backlight
Max. display 1999 (48 x 16mm)
GENERAL CHARACTERISTICS:
Power: 9V bat. (6F22)
Product size: 130 x 73.5 x 35mm
Product weight: 156g
| RoHS | no |
|---|---|
| Manufacturer | UNI-T |
| Type of test accessories | Test leads |
| Type of meter | digital multimeter |
| Resistance measuring range | 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm |
| DC voltage measuring range | 200m/2/20/200/500V |
| Diode test | yes |
| Continuity test | yes |
| AC voltage measuring range | 200/500V |
| DC current measuring range | 200μA/200mA/10A |
