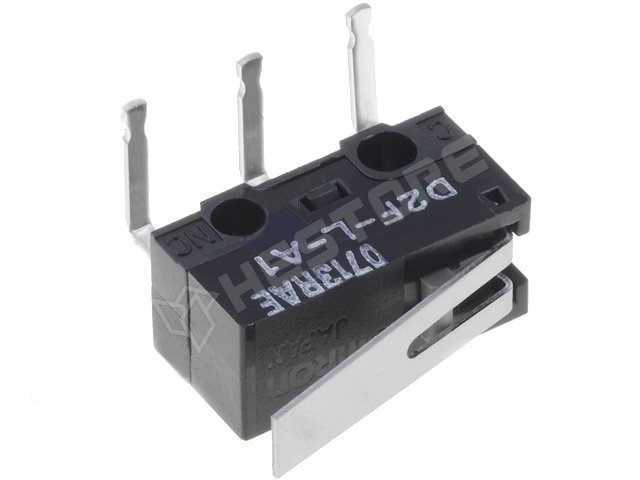

D2F-L-A1 ON-(ON)

Name: D2F-L-A1 ON-(ON)
Brand: OMRON
SKU: 100.349.56
Availability: InStock

Mikrokapcsoló nyelvvel 3A/125VAC

Érintkezők terhelhetősége (rezisztív terhelés esetén) :
– 3 A / 125 VAC
– 2 A / 30 VDC
Kapcsolási mód : ON-(ON)
Stabil pozíciók száma : 1-pozíciós
Szigetelési osztály : IP40
Kivezetések : NYÁK-ra, könyök, bal
Méret : 12,8 × 5.8 × 6 mm
Mechanikai tartósság : 1.000.000 ciklus
Üzemi hőmérséklet : -25 .. 85 °C
Kapcsolási erő : 1,47 N
Mechanizmus hossza : 12,8 mm
Kivezetési raszter : 5,08 mm

RoHS	no
Manufacturer	OMRON, ZIPPY
Terminal pitch	5.08mm
Operating temperature	-25...85°C
Body dimensions	12.8x5.8x6mm
Leads	for PCB, angled, bal
IP rating	IP40
Mechanical durability	1000000 cycles
Type of switch	microswitch SNAP ACTION
Stable positions number	1-position
Switching method	ON-(ON)
Contacts configuration	SPDT
Switches features	with lever
Operating Force	1.47N
Lever length	12.8mm
Manufacturer series	D2F
DC contacts rating @R	2A / 30V DC
AC contacts rating @R	3A / 125V AC
Összes pozíciók száma	2
