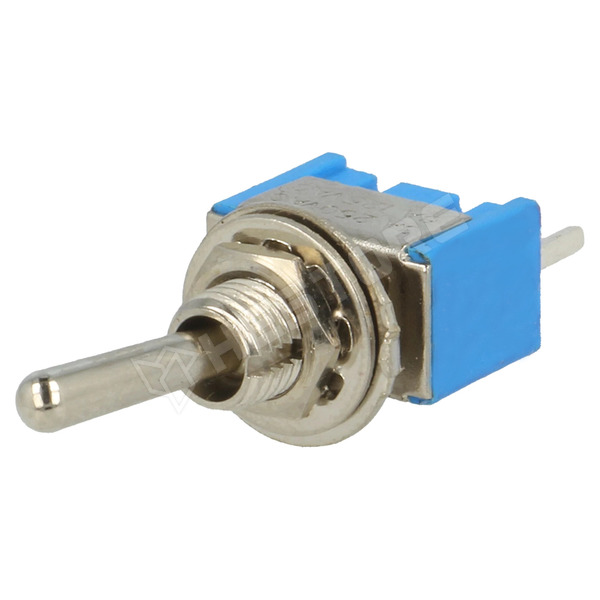

TSM102A2

Kapcsoló, nyelves, 3A / 250V, SPDT, ON-ON

RoHS	yes
Manufacturer	NINIGI
Operating temperature	-25...85°C
Body dimensions	13.2 x 7.9 x 9.5mm, 13.2x7.9x9.5mm
Related items	TSPC05
Leads	for PCB
Type of switch	toggle
Stable positions number	2-position
Number of positions	2
Switching method	ON-ON
Contacts configuration	SPDT
Mounting hole diameter	Ø6mm
AC contacts rating	3 A / 250 VAC
Soldering temperature	260°C / 4 s
Max. contact resistance:	20mΩ
Body colour	blue
Toggle type	round
Knob height	11mm
Electrical life	20000cycles
Actuator material	metal
AC contacts rating @R	3A / 250V AC
Összes pozíciók száma	2
Kind of toggle	round

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.345.37

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	351 Ft
5+	219 Ft
10+	195 Ft
20+	182 Ft
50+	171 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 2500
