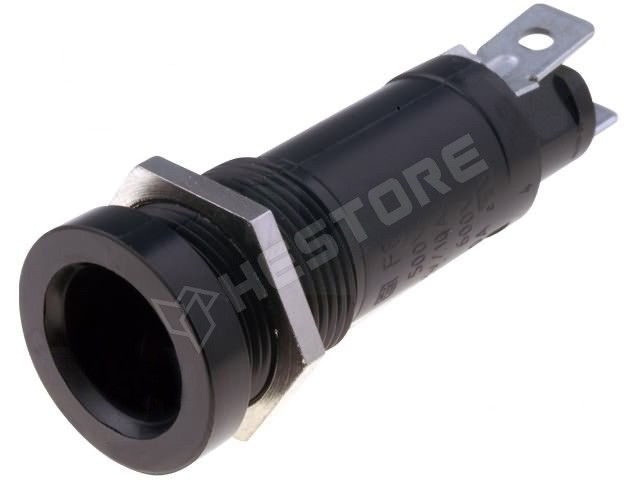

0031.1631

Biztosíték foglalat, 10A

RoHS	no
Manufacturer	SCHURTER
Colour	black
Mounting	for panel mounting
Operating temperature	-40...85°C
Related items	0031.1611, 0031.1613
Rated voltage	500V AC
Contact plating	tinned
Leads	for soldering
IP rating	IP40
Fuse size	5x20mm, 6.3x32mm
Maximum current	10A
Contact material	copper
Mounting hole diameter	Ø16.5mm
Flammability rating	UL94V-0
Contact resistance	5mΩ
Manufacturer series	FEC
Fuses application	cylindrical fuses
Type of fuse accessories	socket
Panel thickness	max 9mm
Cap type	screw type
Korpusz anyaga	hőre keményedő

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.336.23

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 198 Ft
5+	989 Ft
10+	952 Ft
20+	925 Ft
50+	895 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 75

Any questions?

Recommended accessory products

0031.1611
Adapter 0031.1631 foglalathoz, 5x20mm, 10A

0031.1613
Adapter 0031.1631 foglalathoz, 6.3x32mm, 10A
