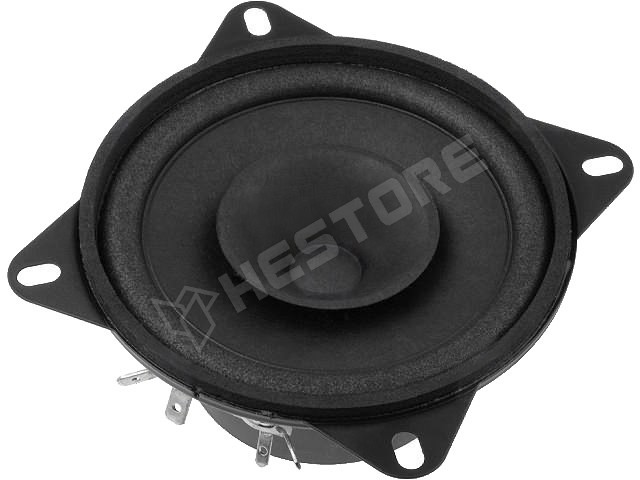

VS FR 10 HM-8

Name: VS FR 10 HM-8
Brand: VISATON
SKU: 100.315.21
Availability: InStock

Univerzális hangszóró, 100mm, 8R

Hangjelző típusa : hangszóró, univerzális
Teljesímény : 20 W
Maximális teljesítmény : 30W
Impedancia : 8 Ohm
Frekvencia átvitel : 95 .. 22.000 Hz
Rezonanciafrekvencia : 120 Hz
Hangerő : 86 dB
Átmérő : 100 mm
Szerelőfurat átmérő : 94 mm
Mélység : 49 mm
Üzemi hőmérséklet : -25 .. 70 °C
Szín : fekete

RoHS	no
Manufacturer	VISATON
Colour	black
Diameter	100mm
Impedance	8Ω
Power	20W
Weight	340g
Operating temperature	-25...70°C
Resonant frequency	120Hz
Mounting holes pitch	116.5mm
Height	49mm
Panel cutout diameter	94mm
Type of sound transducer	loudspeaker
Sound level	86dB
Maximum power	30W
Loudspeaker type	multipurpose
Sound frequency	95...22000Hz
Mounting depth	46mm
Kind of loudspeaker	multipurpose

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.315.21

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	3 605 Ft
5+	3 298 Ft
10+	3 222 Ft
20+	3 155 Ft
50+	3 066 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 75
