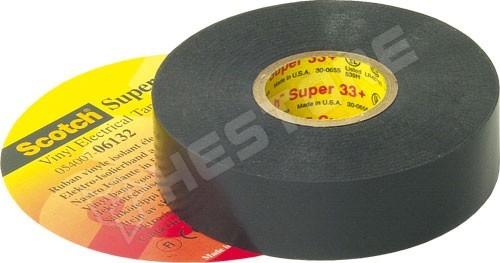

3M SCOTCH S 33+
Szigetelőszalag, 20 m, fekete
Szalag típusa szigetelő
Szélesség 19mm
Hosszúság 20m
Szín fekete
Vastagság 180µm
Üzemi hőmérséklet -18...105°C
Anyag PVC
Erős teherbírás 26N/cm
Átütési feszültség 65kV/mm
Próba feszültség 600V
Tulajdonságok ellenáll az UV sug.
| Manufacturer partno |
SCOTCH SUPER 33+ |
| RoHS |
no |
| Manufacturer |
3M |
| Colour |
black |
| Operating temperature |
-18...105°C |
| Length |
20m |
| Width |
19mm |
| Thickness |
0.178mm |
| Min. insulation resistance |
1TΩ |
| Breakdown voltage |
5kV/mm |
| Flammability rating |
UL510 |
| Type of tape |
electrical insulating |
| Tape application |
isolation, bundling, wires protection against demage, insulation of wires and cables |
| Tape material |
PVC film |
| Elongation at rupture |
250% |
| Adhesive type |
rubber |
| Adhesion to steel |
2.6N/cm |
| Ragasztóréteg fajtája |
rubber |
