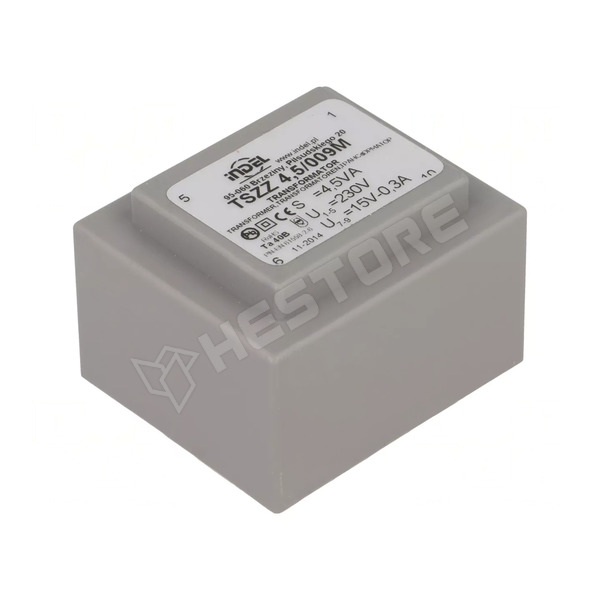

1x15V 4,5VA 230V

PCB transformer, encapsulated, EI38, 4.5VA, 230V AC, 15V, 0.3A

Manufacturer partno	TSZZ4.5/009M
RoHS	yes
Manufacturer	INDEL
Secunder [pc]	1
Core	EI38
Power	4.5VA
Mounting	PCB
Body dimensions	41.4 x 35 x 28.3mm
IP rating	IP00, II
Type of transformer	encapsulated
Primary voltage	230V AC
Secondary voltage 1	15V
Electrical insulation strength	4kV/60s
Conform to the norm	PN-EN 61558
Thermal class	Ta40B
Secondary winding terminals	7-9
Primary winding terminals	1-5
A dimension	41.4mm
A1 dimension	29.7mm
B dimension	35mm
C dimension	28.3mm
Secondary winding current 1	0.3A
B1 dimension	25mm
C1 dimension	22.8mm
M dimension	25.1mm
P dimension	5mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.298.47

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 214 Ft
5+	1 964 Ft
10+	1 910 Ft
20+	1 867 Ft
50+	1 811 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 20
