ELK62800

Name: ELK62800
Brand: ECE
SKU: 100.294.89
Availability: InStock

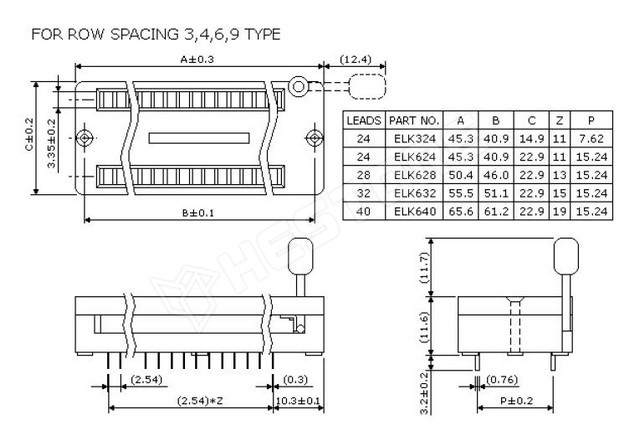

Textool foglalat, ZIF-28-6 (tesztelő), RM6 (15.24 mm)

Karos szorítóval ellátott lemezes foglalat.
Nyomtáv: RM6 (15.24 mm)

RoHS	yes
Manufacturer	ECE
Case	DIL28-6
Operating voltage	50V DC
Terminal pitch	2.54mm
Operating temperature	-25...70°C
Number of pins	28
Electrical mounting	THT
Body colour	blue
Operating current	100mA
Row pitch	15.24mm
Soldering temperature	260°C / 5 s
Max. contact resistance:	10MΩ, 10mΩ
Type of integrated circuit socket	DIP
Sockets features	demountable
Socket type	ZIF
Foglalat fajtája	ZIF

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.294.89

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	3 036 Ft
5+	2 752 Ft
10+	2 685 Ft
20+	2 628 Ft
50+	2 552 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 1000
