TST020W-08V

Name: TST020W-08V
Brand: INDEL
SKU: 100.288.31
Availability: InStock

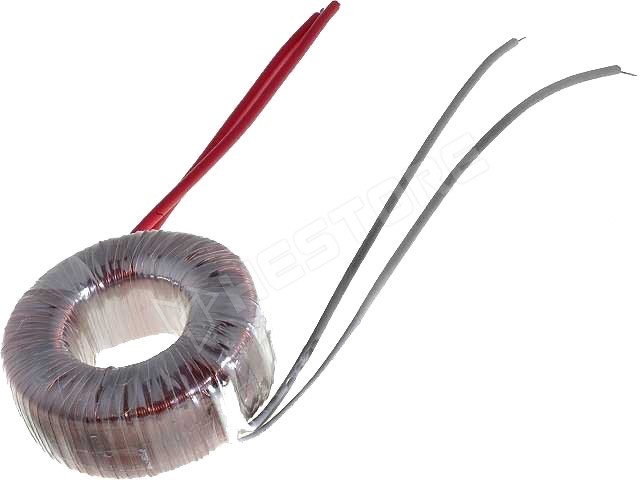

Toroid transzformátor 20VA 8V/2,5A

Teljesítmény: 20 VA
Primer feszültség: 230 V AC
Szekunder feszültség: 8 V
Szekunder tekercs árama: 2,5 A
Kivezetések: 150 mm-es vezetékek
Szigetelési osztály: IP00,II
Hőállósági osztály: Ta40B
Szabvány megfelelőség: PN-EN61558
Elektromos szigetelés szilárdsága: 4 kV/60s
Méretek:(lásd a 2-es képet)
- átmérő (D): 70 mm
- magasság (H): 30 mm
- szerelőfurat átmérő (d): 5,2 mm
Tömeg : 0,4 kg

RoHS	yes
Manufacturer	INDEL
Diameter	70mm
Power	20VA
Weight	0.4kg
Leads	cables
IP rating	IP00, II
Type of transformer	toroidal
Primary voltage	230V AC
Secondary voltage 1	8V
Electrical insulation strength	4kV/60s
Conform to the norm	PN-EN 61558
Thermal class	Ta40B
Secondary winding current 1	2.5A
Cable length	150mm
Height	30mm
Panel cutout diameter	4.2mm
Kit contents	lid, rubber washer x2

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.288.31

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	9 839 Ft
5+	9 276 Ft
10+	9 098 Ft
20+	8 929 Ft
50+	8 686 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 10
