DS03

Name: DS03
Brand: NINIGI
SKU: 100.286.73
Availability: InStock

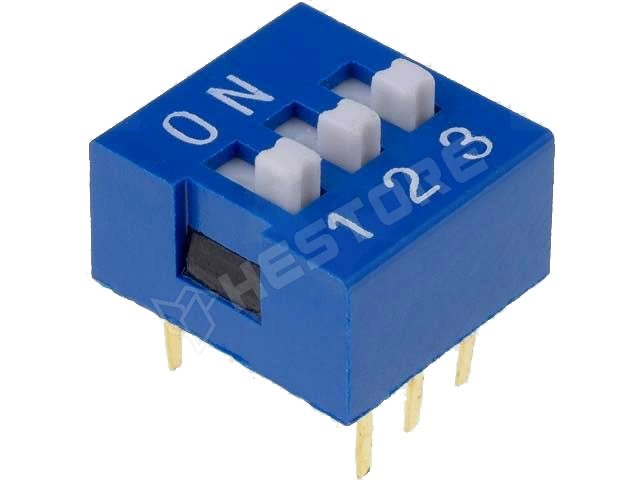

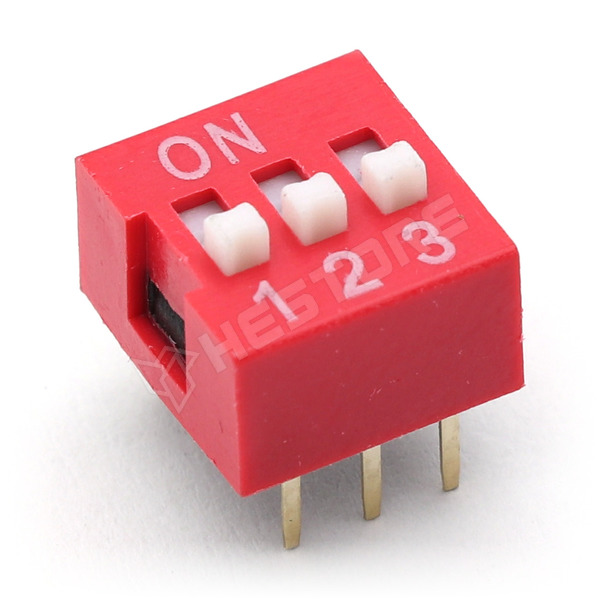

DIP kapcsoló, mini

Méret: 9,1 × 9,9 mm
Raszter: 2,54 mm (1#)
Lábtávolság: 7,62 mm (3#)
Magasság: 6,6 mm
Terhelhetőség: 25mA / 24 VDC
Üzemi hőmérséklet: -20 .. +70 °C
Élettartam: 2000 kapcsolás

A műszaki paraméterek gyártónként némi eltérést mutathatnak.

RoHS	yes
Manufacturer	NINIGI
Case	DIL6
Mounting	THT
Terminal pitch	2.54mm
Operating temperature	-25...80°C
Row pitch	7.62mm
Type of switch	DIP-SWITCH
Stable positions number	2-position
DC contacts rating	0.05 A / 12 VDC
Poles number	3
Switching method	ON-OFF
Switches features	raised actuator
Overall length	9.08mm
Max. contact resistance:	100mΩ
DC contacts rating @R	0.05A / 12V DC
Összes pozíciók száma	2

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.286.73

Add to favorites

Quantity (pcs):

Packing:
50 pcs / tube

Unit price excl. VAT

1+	176 Ft
5+	110 Ft
10+	87,25 Ft
20+	76,75 Ft
50+	70,45 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
3 workdays	> 10000
10-15 workdays	> 250
