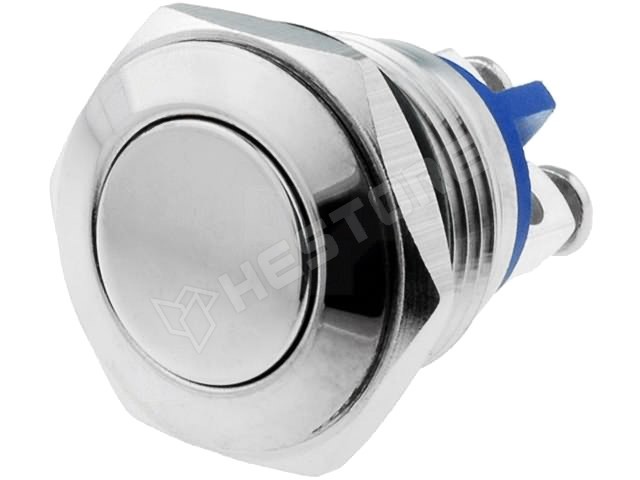

V16-10-S OFF-(ON)

Vandal resistant, OFF-(ON), SPST-NO, 2A / 36V DC

RoHS	yes
Manufacturer	ONPOW
Operating temperature	-20...55°C
Body colour	silver
Mounting hole diameter	Ø16mm
Related items	M12-16F
Leads	screw terminals
Illumination	none
IP rating	IP65
Mechanical durability	1000000 cycles
Test voltage	2kV
Type of switch	vandal resistant
Stable positions number	1
Number of positions	2
Switching method	OFF-(ON)
Contact material	silver alloy
Body material	stainless steel
Contacts configuration	SPST-NO
Operating Force	4N
Max. contact resistance:	50mΩ
Body colour	silver
Electrical life	200000 cycles, 200000 cycles
Button shape	flat, smooth
DC contacts rating @R	2A / 36V DC
Ring shape	rounded

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.282.26

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 368 Ft
5+	1 153 Ft
10+	1 113 Ft
20+	1 083 Ft
50+	1 048 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 1000
