1x18V 35VA 230V

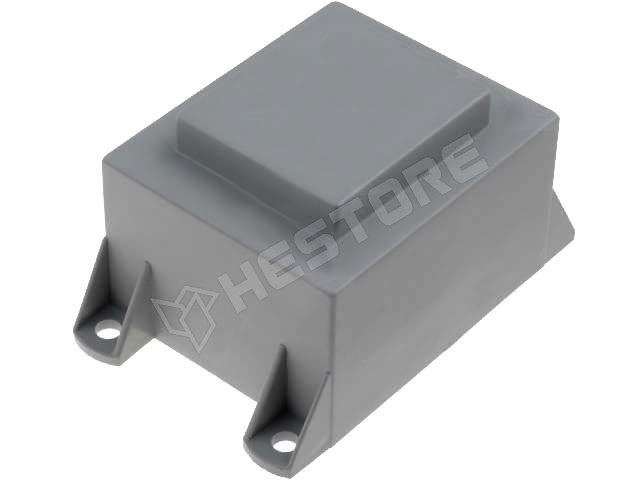

PCB transformer, encapsulated, 35VA, 230V AC, 18V, 1.94A

Manufacturer partno	TSZZ35/009M/5
RoHS	no
Manufacturer	INDEL
Power	35VA
Weight	700g
Mounting	PCB
D dimension	72.5mm
D1 dimension	43.5mm
IP rating	IP00, II
Type of transformer	encapsulated
Primary voltage	230V AC
Secondary voltage 1	18V
Electrical insulation strength	4kV/60s
Conform to the norm	PN-EN 61558
Thermal class	Ta40B
Secondary winding terminals	9-13
Primary winding terminals	1-7
A dimension	63.6mm
A1 dimension	41.8mm
B dimension	53.6mm
C dimension	51.5mm
Secondary winding current 1	1.94A
B1 dimension	35.8mm
C1 dimension	42.2mm
M dimension	32.5mm
P dimension	5mm
