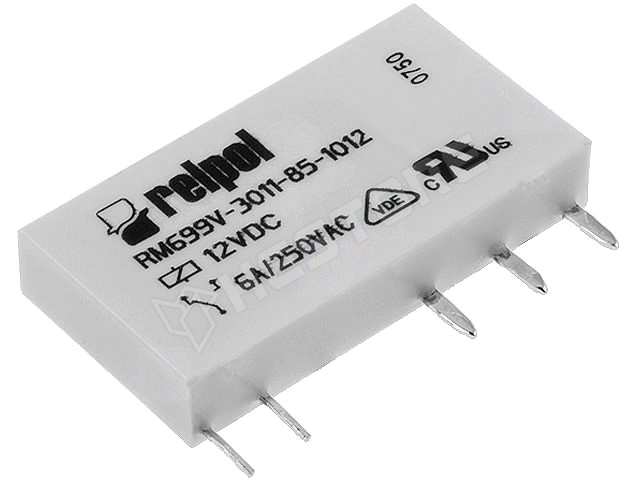

RM 699 VP12

230V/6A, DC12V

Manufacturer partno	RM699BV-3011-85-1012
RoHS	no
Manufacturer	RELPOL
Current	6A
Coil	12V DC
Contact	SPDT
Voltage	230V AC
Mounting	vertical, PCB, socket
Terminal pitch	5mm
Operating temperature	-40...85°C
Body dimensions	28 x 5 x 15mm
Related items	PI6W-1P, PI6W-1P-24V DC
IP rating	IP64
DC contacts rating	6 A / 24 VDC
Contacts configuration	SPDT
AC contacts rating	6 A / 250 VAC
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	6A
Switched voltage	max 400V AC, max 24V DC
Relay variant	interface
Coil resistance	848Ω
Coil voltage min.	9V DC
Coil voltage max.	18V DC
Operate time	8ms
Release time	4ms
Coil power consumption	170mW
Relay series	RM699B
Contact resistance	100mΩ
DC contacts rating @R	6A / 24V DC
AC contacts rating @R	6A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.281.02

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 375 Ft
5+	2 119 Ft
10+	2 062 Ft
20+	2 016 Ft
50+	1 957 Ft
