POT149-1K

Name: POT149-1K
Brand: VISHAY
SKU: 100.269.46
Availability: InStock

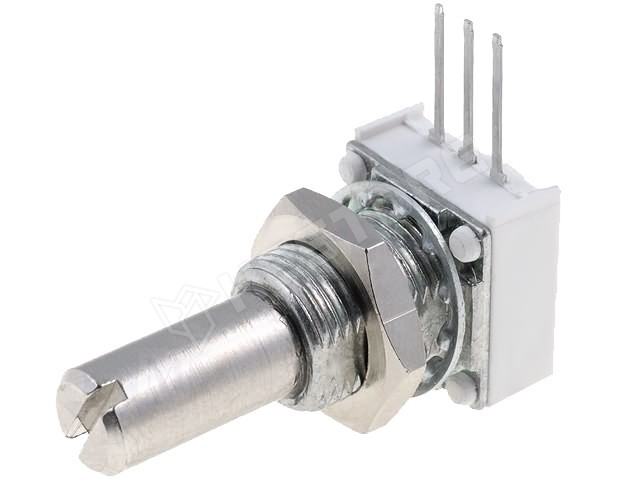

Potenciométer, cermet, 6.38mm tengely

Karakterisztika: lineáris
Névleges ellenállás: 1 kOhm
Tűrés: 20%
Max. feszültség: 350V AC
Teljesítmény: 1W (70°C)
Elforgatási szög:
- mechanikai: 300 ą5°
- elektromos: 270 ą10°
Tengely átmérő: 6,38 mm

RoHS	yes
Manufacturer	VISHAY
Power	1W
Resistance	1kΩ
Mounting	THT
Tolerance	±10%
Operating temperature	-40...150°C
Body dimensions	12.5 x 12.5 x 8.8mm, 12.5x12.5x8.8mm
Max. operating voltage	350V AC
Temperature coefficient	150ppm/°C
Type of potentiometer	shaft, single turn
Track material	cermet
Potentiometer standard	12.5mm
Potentiometer series	149
Shaft diameter	6.35mm
Shaft surface	smooth
Potentiometer features	for industrial use
Electrical rotation angle	270 ±10°
Electrical life	25000cycles
Linearity tolerance	±5%
Kind of potentiometer	single turn

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: Vishay Intertechnology, Inc.
Postal address: 4840 Telefunkenstrasse 5, Voecklabruck, Austria
Electronic address: https://www.vishay.com/

Part.No: 100.269.46

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	$ 10.446
5+	$ 9.547
10+	$ 9.324
20+	$ 9.132
50+	$ 8.871

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 100
