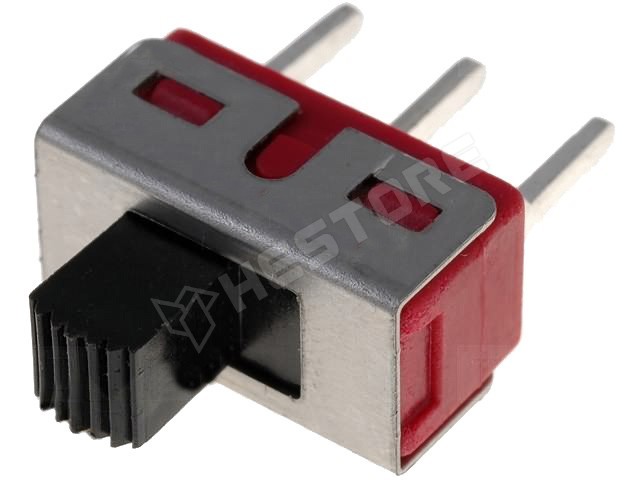

SL 19121

Tolókapcsoló NYÁK-hoz, SPDT

Manufacturer partno	SL19-121
RoHS	no
Manufacturer	CANAL ELECTRONIC
Mounting	THT
Terminal pitch	4.7mm
Operating temperature	-20...85°C
Body dimensions	12.8 x 6.7 x 6.35mm, 12.8x6.7x6.35mm
Body colour	silver
Contact plating	silver plated
Leads	straight, for PCB
Min. insulation resistance	100mΩ, 100MΩ
Mechanical durability	30000cycles
Type of switch	slide
Stable positions number	2-position
DC contacts rating	6 A / 28 VDC
Number of positions	2
Switching method	ON-ON
Contact material	copper
Body material	stainless steel
Contacts configuration	SPDT
AC contacts rating	3 A / 250 VAC
Max. contact resistance:	10MΩ, 10mΩ
Knob height	4.65mm
Actuator material	Poliamid
Actuator colour	black
Button marking	blank
Manufacturer series	SL19
Terminals material	copper alloy
Terminals plating	silver plated
DC contacts rating @R	6A / 28V DC
AC contacts rating @R	3A / 250V AC
Összes pozíciók száma	2
Korpusz anyaga	stainless steel

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.265.99

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	458 Ft
5+	286 Ft
10+	261 Ft
20+	246 Ft
50+	234 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 2000
