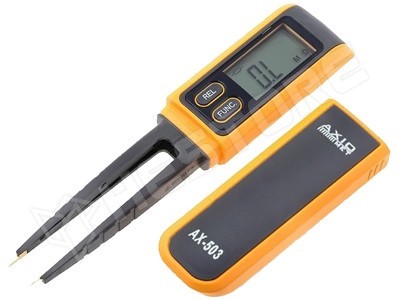

AX-503
SMD mérő multiméter
Low battery indicator
Diode test
Measures resistance and capacitance
Relative measurement function
Auto power off
Display : LCD 3,75 digit
Resistance : 0,1...400/4k/40k/400k/4M/40M Ohm
Accuracy : ą (1,2% + 3 digit); ą (2,0% + 5 digits for 40MOhm)
Capacitance : 1pF...4nF/40nF/400nF/4µF/40µF/200µF
Accuracy : ą (3,0% + 5 digits); ą (5,0% + 5 digits for 4nF)
Dimensions : 20 × 35 × 181 mm
Weight : 65 g (with batteries)
Supply voltage : 2 batteries 1,5V LR44 (included)
Temperature range : 0°C to + 40°C
Pollution degree : 2
Diode test
Measures resistance and capacitance
Relative measurement function
Auto power off
Display : LCD 3,75 digit
Resistance : 0,1...400/4k/40k/400k/4M/40M Ohm
Accuracy : ą (1,2% + 3 digit); ą (2,0% + 5 digits for 40MOhm)
Capacitance : 1pF...4nF/40nF/400nF/4µF/40µF/200µF
Accuracy : ą (3,0% + 5 digits); ą (5,0% + 5 digits for 4nF)
Dimensions : 20 × 35 × 181 mm
Weight : 65 g (with batteries)
Supply voltage : 2 batteries 1,5V LR44 (included)
Temperature range : 0°C to + 40°C
Pollution degree : 2
| RoHS | no |
|---|---|
| Manufacturer | AXIOMET |
| Type of display used | LCD 3,75 digit (6000) |
| Power supply | 2 batteries 1,5V LR44, battery not included, set without battery |
| Overall dimensions (W x D x H) | 20 x 181 x 35mm |
| Type of meter | digital multimeter |
| Measuring instrument features | automatic power-off, low battery indicator, REL function, diode test, low battery display |
| Resistance measuring range | 0,1...400/4k/40k/400k/4M/40MΩ |
| Resistance measuring accuracy | ±(1,2% + 3 digits) (0,1...4MΩ), ±(2% + 5 digits) (40MΩ) |
| Capacitance measuring range | 1p...4n/40n/400n/4µ/40µ/200µF |
| Capacitance measuring accuracy | ±(3% + 5 digits) |
| Diode test | 1mA, 1,5V |
| Sampling | 3x/s |
| Pollution degree | 2 |
| Weight with battery | 65g |
| Kind of display used | LCD 3,75 digit (6000) |
| Measurement | resistance, capacitance |
| Külső méretek (szél.x mély. x mag.) | 35x20x181mm |
