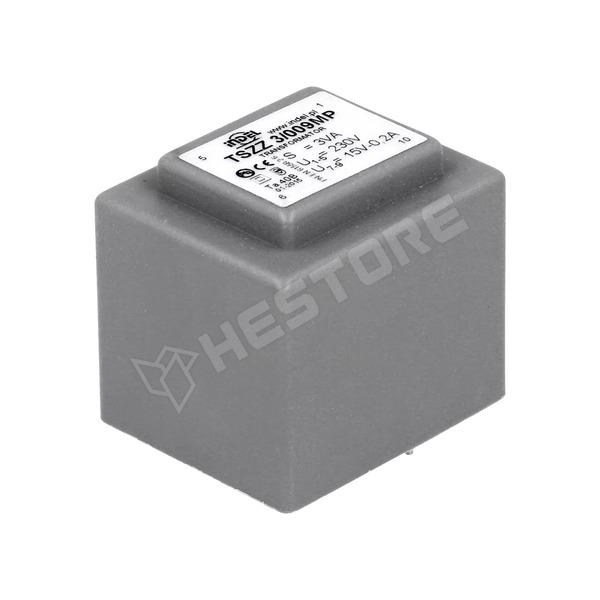

1x15V 3VA 230V

PCB transformer, encapsulated, EI30, 3VA, 230V AC, 15V, 0.2A

Manufacturer partno	TSZZ3/009MP
RoHS	yes
Manufacturer	INDEL
Secunder [pc]	1
Core	EI30
Power	3VA
Weight	150g
Mounting	PCB
IP rating	IP00, II
Type of transformer	encapsulated
Primary voltage	230V AC
Secondary voltage 1	15V
Electrical insulation strength	4kV/60s
Conform to the norm	PN-EN 61558
Thermal class	Ta40B
Secondary winding terminals	7-9
Primary winding terminals	1-5
A dimension	32.3mm
A1 dimension	23.6mm
B dimension	27.3mm
C dimension	29mm
Secondary winding current 1	0.2A
B1 dimension	20.2mm
C1 dimension	25.4mm
M dimension	20mm
P dimension	5.05mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.258.58

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 949 Ft
5+	1 710 Ft
10+	1 660 Ft
20+	1 621 Ft
50+	1 572 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 10
