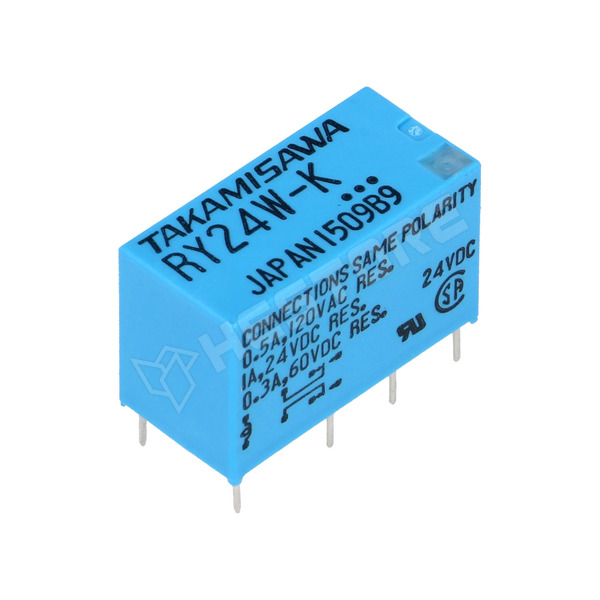

RY-24 W-K

Relay, DPDT, 24V DC, 0.5 A / 120 VAC, 1 A / 24 VDC, 0.5A / 120V AC, 1A / 24V DC

RoHS	yes
Manufacturer	FUJITSU-TAKAMISAWA
Case	RY
Current	1A
Coil	24V DC
Contact	DPDT
Voltage	120V AC
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-30...90°C
Body dimensions	20.2 x 9.8 x 12.5mm
Contact plating	gold-plated
DC contacts rating	1 A / 24 VDC
Contact material	silver alloy, AgPd/Au 0,2μm
Contacts configuration	DPDT
AC contacts rating	0.5 A / 120 VAC
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	1A
Switched voltage	max 120V AC, max 60V DC
Relay variant	miniature
Coil resistance	2.88kΩ
Operate time	6ms
Release time	3ms
Coil power consumption	200mW
Relay series	RY
Contact resistance	100mΩ
DC contacts rating @R	1A / 24V DC
AC contacts rating @R	0.5A / 120V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.230.83

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	711 Ft
5+	523 Ft
10+	494 Ft
20+	475 Ft
50+	456 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 2000

Any questions?

Alternatives, similar/substitute products

G5V-2-H1 24VDC
Relay, DPDT, 24V DC, 0.5A / 125V AC, 1A / 24V DC
