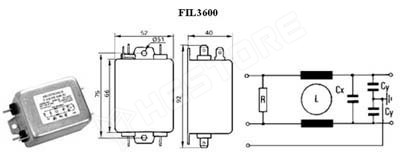

FIL3600

Zavarszűrő modul, 250V/16A

Manufacturer partno	FAMDB3600ZC000
RoHS	no
Manufacturer	KEMET
Resistance	470kΩ
Operating voltage	250V AC
Operating temperature	-25...85°C
Body dimensions	66 x 40 x 52mm, 66x40x52mm
Enclosure material	metal
Leads	6,3x0,8mm connectors
Capacitance Cx	600nF
Capacitance Cy	2.5nF
Filter type	anti-interference
Max. operating current	16A
Filter series	FIL36
Inductance of individual winding	1mH

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.212.74

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	16 121 Ft
5+	15 301 Ft
10+	15 019 Ft
20+	14 748 Ft
50+	14 350 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 20
