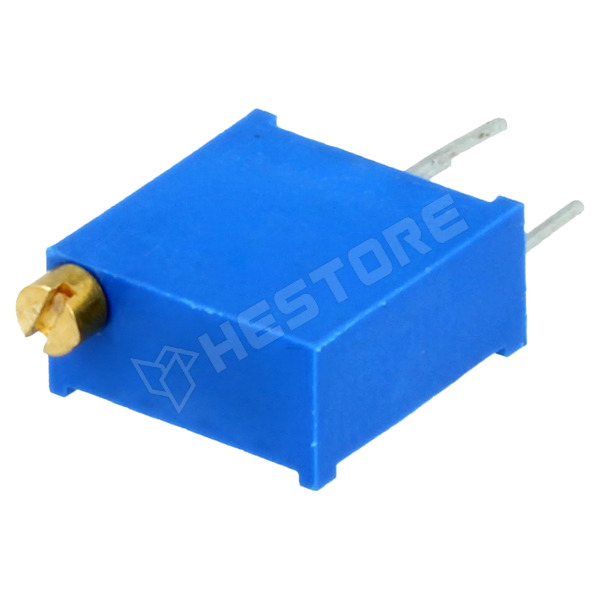

3296Y-500K

Trimmer potentiometer, mounting, multiturn, 500kΩ, 500mW

Manufacturer partno	3296Y-504
RoHS	yes
Power	500mW
Resistance	500kΩ
Characteristics	linear
Mounting	THT
Tolerance	±10%
Terminal pitch	2.5mm
Operating temperature	-55...125°C
Body dimensions	10x9.5x4.8mm
Type of potentiometer	mounting
Track material	cermet
Potentiometer standard	3/8"
Kind of potentiometer	multiturn

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.210.44

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	174 Ft
5+	109 Ft
10+	86,77 Ft
20+	75,12 Ft
50+	67,11 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
3 workdays	> 2000
