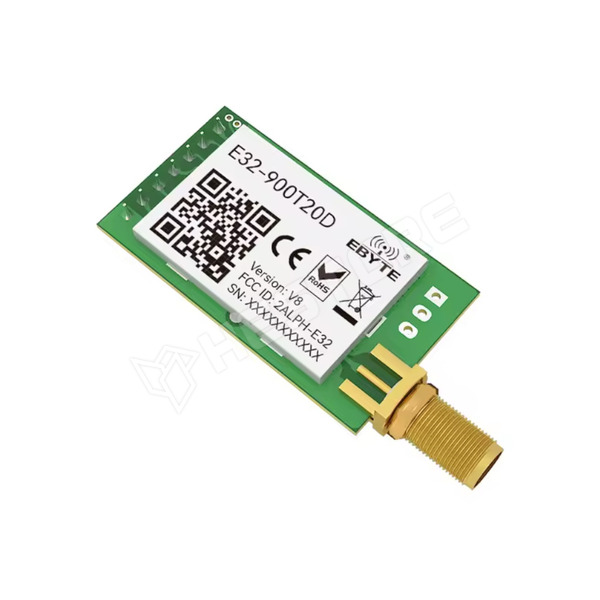

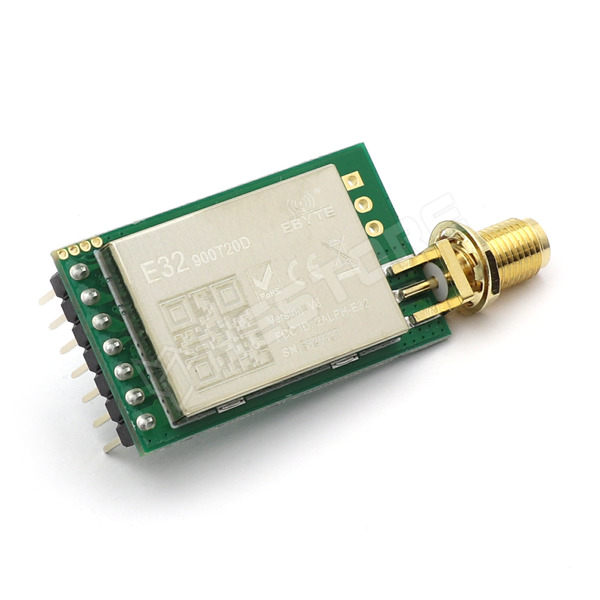

E32-900T20D-V8

LoRa module, 862...931MHz, 100mW, SX1276

RoHS	yes
Manufacturer	EBYTE
Frequency	862...931MHz
Kind of connector	SMA female
Supply voltage	2.3...5.5V DC
Interface	UART
Transmission rate	0.3...19.2kbps
Dimensions	21 x 36mm
Receiver sensitivity	-146dBm
Supply current	2...5μA (sleep)
TX/RX supply current	120mA / 15mA
Adó teljesítménye, dBm	20dBm
Kind of module	transceiver
Chipset	SX1276
Logic signal level	3.3V

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.497.91

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	4 804 Ft
5+	4 440 Ft
10+	4 343 Ft
20+	4 257 Ft
50+	4 137 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
10-15 workdays	> 10000
