SI5351-M

Name: SI5351-M
Brand: HESTORE
SKU: 100.490.86
Availability: InStock

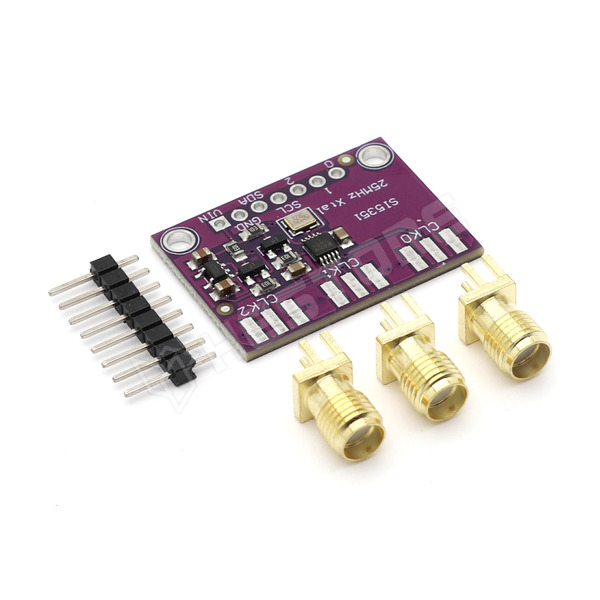

Si5351 based clock generator module, I2C, 8KHz...160MHz

Si5351 based clock generator module. In addition to the IC, the module has an LDO and level matching additional electronics for 5V power supply and 5V logic level. For more flexible use, the SMA connectors and pin row are NOT soldered.

- Supply voltage: 3.3...5V DC
- Logic signal level: 3.3V, 5V
- Output impedance: 50Ω
- Output signal duty cycle: 50%
- I2C speed: 100K...400Kbps
- I2C address: 0x60
(This package does not allow changing the address)
- Rise time: 1ns
- Output connector: SMA female
- Operating temperature: -40...85℃
- Dimensions: 31 x 21.5mm

Pinouts:
1) VIN: VCC
2) GND: GND
3) SDA: Data
4) SCL: Clock
5) Pin 2: Clock output channel 2
6) Pin 1: Clock output channel 1
7) Pin 0: Clock output channel 0

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.490.86
