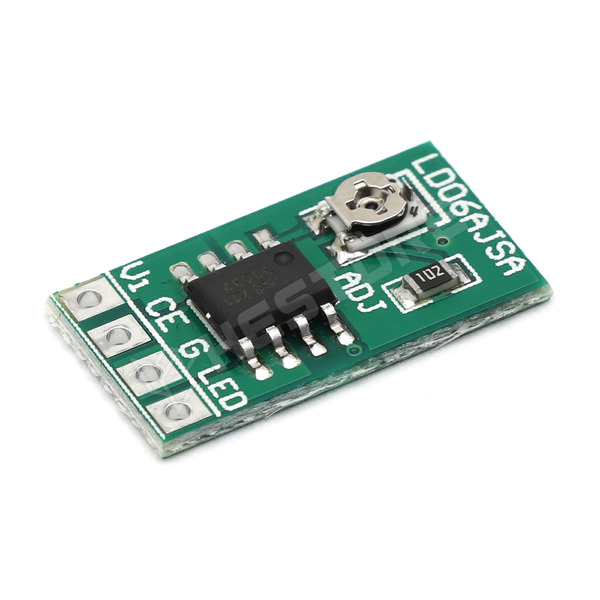

LD06AJSA
CN5711 based current generator LED driver module, max. 1.5A, 2.8-6V
• Supply voltage: 2.8...6V DC
• Output current: max. 1.5A
• LED brightness control possible with PWM, logic signal or potentiometer
• Output voltage drop: typical 0.37V (at 1.5A load)
• Overcurrent protection: typical operating limit at 1.9A
• Dimensions: 18 x 10.2mm
• Pin assignment:
- V1: Positive power supply input
- CE: Enable input: logic high on, low off.
- G: GND
- LED: LED output
Note:
Use appropriate cooling to ensure heat dissipation.
• Output current: max. 1.5A
• LED brightness control possible with PWM, logic signal or potentiometer
• Output voltage drop: typical 0.37V (at 1.5A load)
• Overcurrent protection: typical operating limit at 1.9A
• Dimensions: 18 x 10.2mm
• Pin assignment:
- V1: Positive power supply input
- CE: Enable input: logic high on, low off.
- G: GND
- LED: LED output
Note:
Use appropriate cooling to ensure heat dissipation.
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.489.79
Quantity (pcs):
Unit price excl. VAT
| 1+ | 800 Ft |
|---|---|
| 5+ | 608 Ft |
| 10+ | 577 Ft |
| 20+ | 557 Ft |
| 50+ | 536 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 10 |
| 10-15 workdays | > 10000 |
