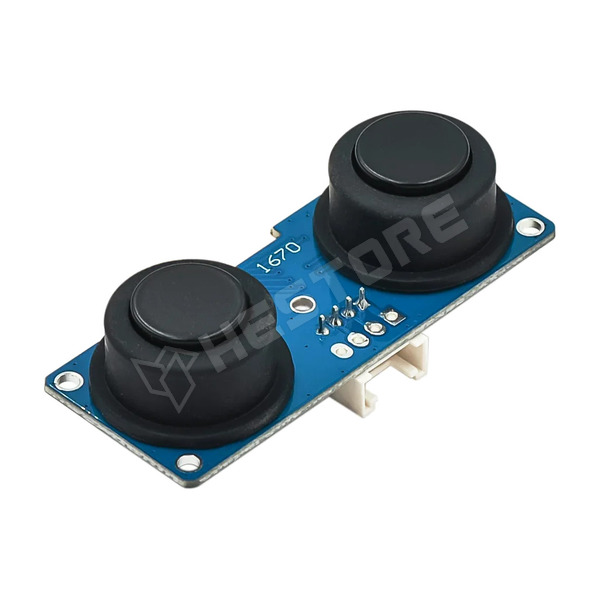

RCWL-1670
Ultrasonic distance measuring module with waterproof transceiver, 3...5V DC, 2...400cm
RCWL-1670 is a split ultrasonic measuring module with a waterproof transceiver.
- Operating voltage: 3...5V DC
- Operating current: 6mA
- Standby current: 3.5uA @ 5V, 1.5uA @ 3.3V
- HC-SR04 compatible software
- 2cm blind area, 4 meters typical maximum distance
- 50ms measurement period
Contacts:
- 5V marking: 3...5V DC positive
- TX marking: ECHO - return distance signal
- RX marking: TRIG - trigger signal
- GND marking: GND
- Operating voltage: 3...5V DC
- Operating current: 6mA
- Standby current: 3.5uA @ 5V, 1.5uA @ 3.3V
- HC-SR04 compatible software
- 2cm blind area, 4 meters typical maximum distance
- 50ms measurement period
Contacts:
- 5V marking: 3...5V DC positive
- TX marking: ECHO - return distance signal
- RX marking: TRIG - trigger signal
- GND marking: GND
