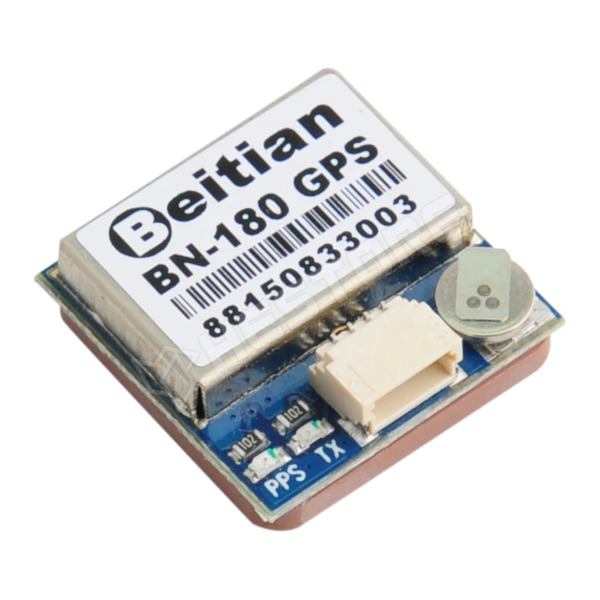

BN-180
M8030-KT based GPS receiver module, 72 channels, max. 10 Hz, patch antenna, UART+PPS output
Magyar
- Default position system: GPS, GLONASS, BDS, GALILEO
- Augmentation: SBAS, QZSS
- Channel: 72
- Tracking and navigation: -167dBm
- Re-: -160dBm
- Cold: -148dBm
- Hot: -156dBm
- Horizontal: 2.0m CEP
- Velocity accuracy: 0.1m/s 95% (SA off)
- Time accuracy: 1us
- Cold: 26s
- Hot: 25s
- Aided: 1s
- Baud rate: 4800...921600bps (default: 9600bps)
- Output: TTL
- Output protocol: NMEA-0183
- Update: 1...10Hz (default: 1Hz)
- Flash: No
- Height: <50000m
- Velocity: <515m/s
- Gravity: <4g
- Voltage: 3.6...5.5V DC
- Current: 50mA / 5V
- Size: 18 x 18 x 6.2mm
- Weight: 4.9g
- Connector: 4pin RM1mm
- Operation temperature: -40...85°C
- TX LED: Data output, TX LED flashing
- PPS LED: Flashing when GPS fixed
- Compass: No
- Default position system: GPS, GLONASS, BDS, GALILEO
- Augmentation: SBAS, QZSS
- Channel: 72
- Tracking and navigation: -167dBm
- Re-: -160dBm
- Cold: -148dBm
- Hot: -156dBm
- Horizontal: 2.0m CEP
- Velocity accuracy: 0.1m/s 95% (SA off)
- Time accuracy: 1us
- Cold: 26s
- Hot: 25s
- Aided: 1s
- Baud rate: 4800...921600bps (default: 9600bps)
- Output: TTL
- Output protocol: NMEA-0183
- Update: 1...10Hz (default: 1Hz)
- Flash: No
- Height: <50000m
- Velocity: <515m/s
- Gravity: <4g
- Voltage: 3.6...5.5V DC
- Current: 50mA / 5V
- Size: 18 x 18 x 6.2mm
- Weight: 4.9g
- Connector: 4pin RM1mm
- Operation temperature: -40...85°C
- TX LED: Data output, TX LED flashing
- PPS LED: Flashing when GPS fixed
- Compass: No
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.488.54
Quantity (pcs):
Unit price excl. VAT
| 1+ | 9 735 Ft |
|---|---|
| 5+ | 9 176 Ft |
| 10+ | 8 999 Ft |
| 20+ | 8 833 Ft |
| 50+ | 8 592 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 5 |
| 10-15 workdays | > 10000 |
