ADUM3160-M-4CH

Name: ADUM3160-M-4CH
Brand: HESTORE
SKU: 100.488.46
Availability: InStock

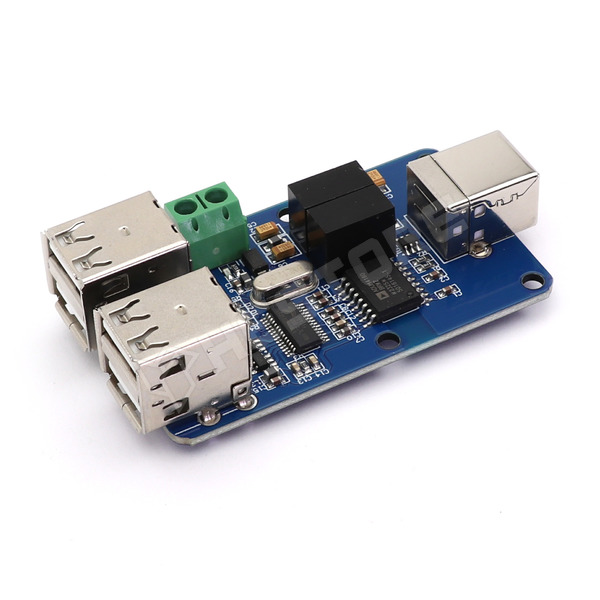

USB isolator, HUB, 4 channel, 1500V, 1.5Mbps/12Mbps

Tips!
The module uses 2 parallel B0505S-1W DC-DC converters to provide 5V isolation, so the output can be loaded with a maximum of 360mA in total. For higher loads, use an additional power supply on the load side.

Compatibility: USB2.0
Speed: 1.5Mbps / 12Mbps
Isolation voltage:
- ADUM3160: 2500V
- Power module: 1500V
Load capacity: 360mA (2x B0505S-1W)
ESD protection on each output

Operating temperature: -40...85°C
Connectors:
- Input: USB-B socket
- Output: 2x2 USB-A socket
- Terminal block 2p, screw terminals 5.08mm
Dimensions: 63 x 37mm

The outputs are not isolated from each other!
