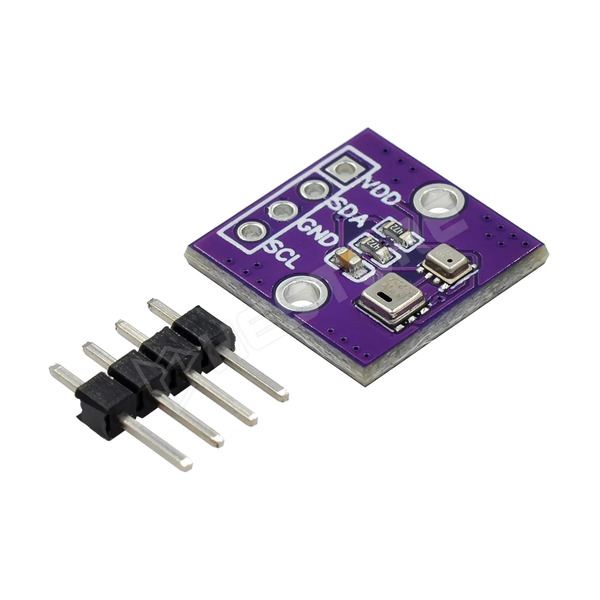

AHT20+BMP280-M

Name: AHT20+BMP280-M
Brand: HESTORE
SKU: 100.488.40
Availability: InStock

Temperature, humidity, and pressure measurement module, I2C

Supply voltage: 3.3V
- Module supply voltage range: 2.0...3.6V
- BMP280 supply voltage: 1.71...3.6V
- AHT20 supply voltage: 2.0...5.5V

Interface: I2C
Dimensions: 15 x 15mm

AHT20:
- Humidity measurement accuracy: ± 2%
- Humidity measurement resolution: 0.024%
- Temperature measurement accuracy: ±0.3°C
- Temperature measurement resolution: 0.01 °C
- Operating temperature: -40°C … 85°C

BMP280
- Pressure range: 300 – 1100hPa
- Noise suppression: enhanced noise protection (metal case)
- High sensitivity: 0.0013hPa (0.11 m height change)
- Measurement accuracy: 950..1050hPa/±0.12hPa @ 25°C/±1.0m
- High linearity: max. error 0.02hPa (0.17 meters)
- Temperature measurement: -40…+85°C, ±0.5°C
- Low power consumption: 5µA (standard mode)
- Built-in temperature compensation
- Response time: 5ms
- Operating current: 32µA/650µA
- Standby current: 0.1µA

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.488.40

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	639 Ft
5+	453 Ft
10+	425 Ft
20+	408 Ft
50+	391 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
10-15 workdays	> 2000
