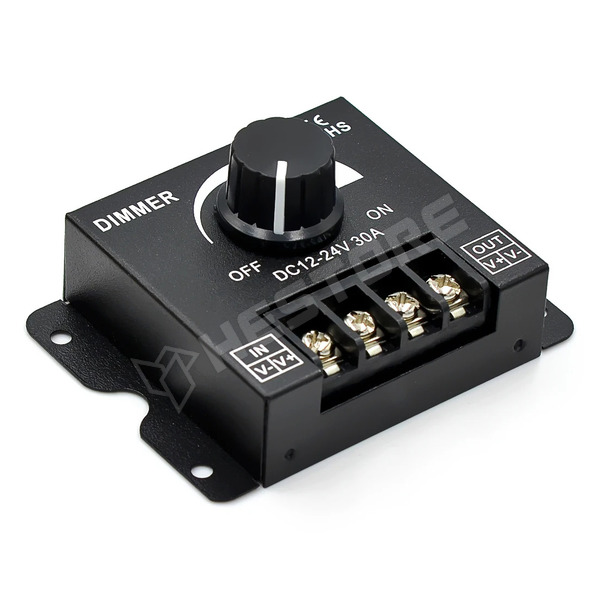

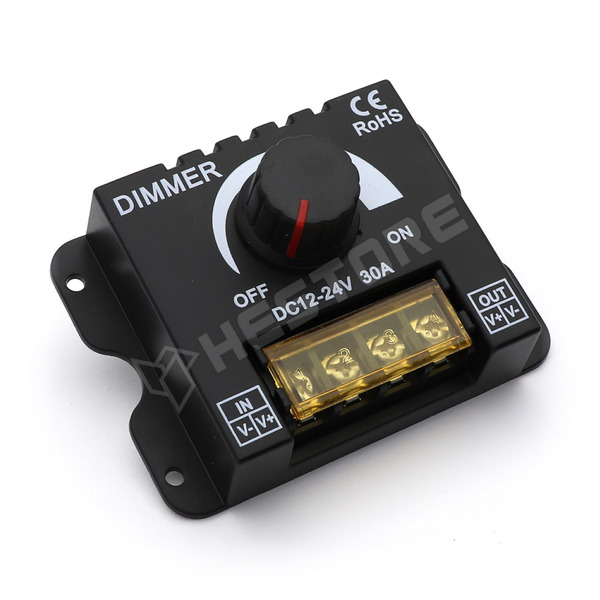

DC-DIMMER-30A
LED strip dimmer, 12...24V DC, 30A
Operation: 555 and lm358 based pwm controller, with two FETs connected in parallel (2 x 2SK4145)
Frequency: approx. 10kHz
Box size: without potentiometer (with potentiometer), without lug (with lug):
62 x 21(36) x 66(86)mm
Mounting hole spacing: 77.5 x 44mm
Mounting hole diameter: Ø3.8mm
Frequency: approx. 10kHz
Box size: without potentiometer (with potentiometer), without lug (with lug):
62 x 21(36) x 66(86)mm
Mounting hole spacing: 77.5 x 44mm
Mounting hole diameter: Ø3.8mm
| Output voltage | 12...24V DC |
|---|---|
| Input voltage | 12...24V DC |
| Operating temperature | -20...60°C |
| Output current | 0...30A |
| Input current | 0...30A |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.488.34
Quantity (pcs):
Unit price excl. VAT
| 1+ | 1 894 Ft |
|---|---|
| 5+ | 1 657 Ft |
| 10+ | 1 609 Ft |
| 20+ | 1 570 Ft |
| 50+ | 1 523 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 25 |
| 10-15 workdays | > 10000 |
