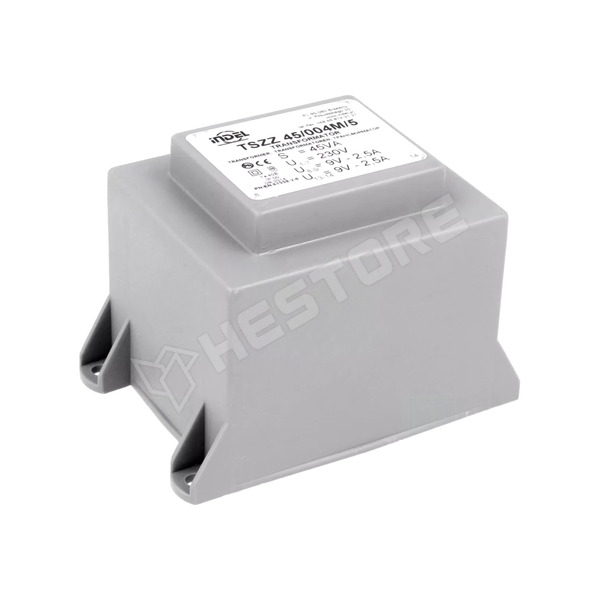

TSZZ45-004M-5

Transformer, 45VA, 230VAC, 2x 9V, 2x 2.5A

Manufacturer partno	TSZZ45/004M/5
RoHS	yes
Manufacturer	INDEL
Power	45VA
Mounting	PCB
IP rating	IP00, II
Type of transformer	encapsulated
Primary voltage	230V AC
Secondary voltage 1	9V
Electrical insulation strength	4kV/60s
Conform to the norm	PN-EN 61558
Thermal class	Ta40B
Secondary winding terminals	8-9, 13-14
Primary winding terminals	1-7
Secondary winding current 1	2.5A
Secondary voltage 2	9V
Secondary winding current 2	2.5A

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.486.90

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	9 031 Ft
5+	8 502 Ft
10+	8 336 Ft
20+	8 181 Ft
50+	7 958 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 3
