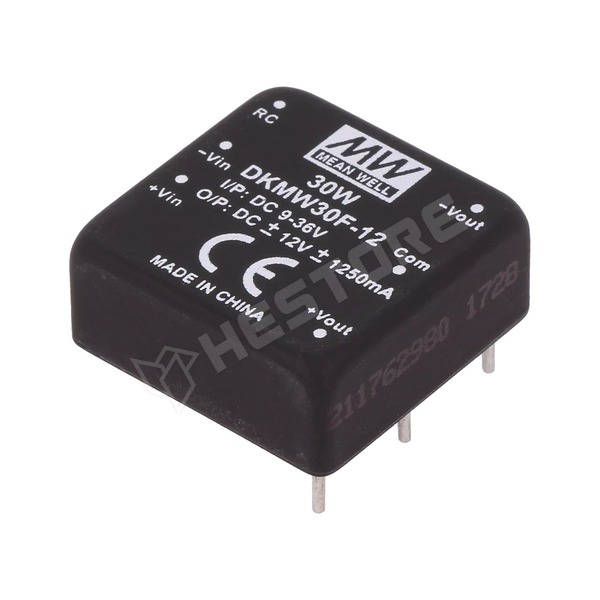

DKMW30F-12

DC/DC converter, 30W, Uin: 9...36V DC, Uout1: 12V DC, Uout2: -12V DC

Manufacturer partno	DKMW30F-12
RoHS	yes
Manufacturer	MEAN WELL
Power	30W
Output voltage	12V DC
Input voltage	9...36V DC
Series	DKMW30
Mounting	THT
Operating temperature	-40...85°C
Body dimensions	25.4x25.4x10.2mm
Output current	1425mA
Protection	short circuit protection, overheating, anti-overload, anti-overvoltage, undervoltage
Number of outputs	2
Body dimensions	25.4x25.4x10.2mm
Efficiency	87%
Insulation voltage	1.5kV DC
Output voltage 2	-12V DC
Output current 2	1425mA
Type of converter	DC/DC
Switching frequency	330kHz
Konverter típusa	DC/DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.486.87

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	13 064 Ft
5+	12 369 Ft
10+	12 137 Ft
20+	11 916 Ft
50+	11 594 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 100
