DB38-12V-BELL

Name: DB38-12V-BELL
Brand: HESTORE
SKU: 100.486.75
Availability: InStock

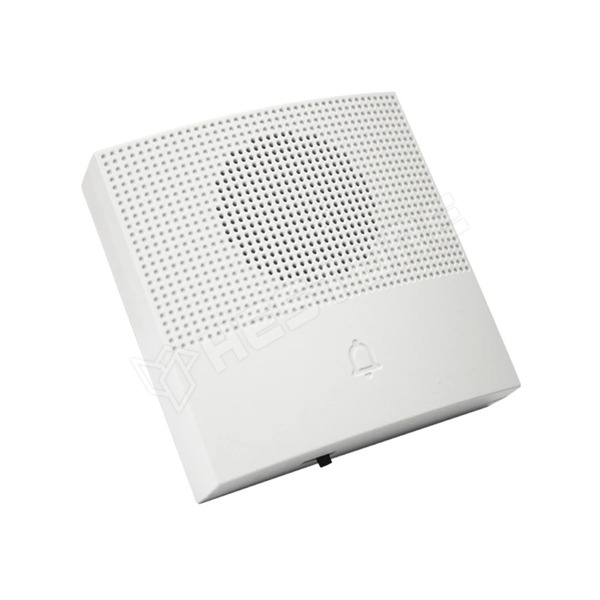

Doorbell, 12V, 4 wires, white, 38 melodies

Operating voltage: DC 12V
Power: 3W
Volume: 90dB
Material: Plastic
Color: White
Application: 12V security access control system
Switch not included
Dimensions: 86 x 86 x 25mm
Hook-ear center distance: 60mm
Outputs:
- Red: +12V
- Black: GND
- Green: BELL-
- Yellow: BELL+

Melody selection with the push button
The set melody will NOT be saved after power failure!

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.486.75
