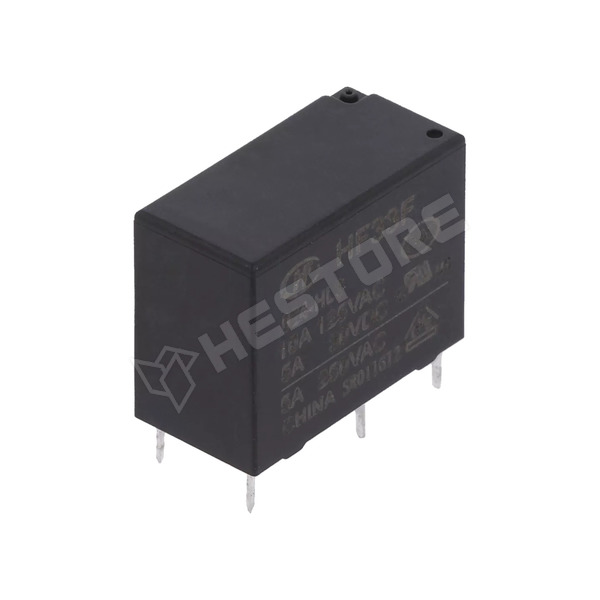

HF33F-024-HL3

Relay, SPST-NO, 24V DC, 5A / 250V AC, 5A / 30V DC

» Long lead time reported on this product.

HF33F-024-HL3 / Relay, SPST-NO, 24V DC, 5A / 250V AC, 5A / 30V DC (HF33F/024-HL3 / HONGFA RELAY)

Manufacturer partno	HF33F/024-HL3
RoHS	yes
Manufacturer	HONGFA RELAY
Mounting	PCB
Terminal pitch	7.6mm
Operating temperature	-40...70°C
Body dimensions	20.5x15.3x10.2mm
Body dimensions	20.5x15.3x10.2mm
Contact material	AgNi
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	24V DC
Contact current max.	10A
Switched voltage	max. 250V AC, max. 30V DC
Relay variant	subminiature
Coil resistance	2.8kΩ
Coil voltage min.	18V DC
Coil voltage max.	36V DC
Operate time	8ms
Release time	5ms
Coil power consumption	200mW
Contact resistance	100mΩ
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	5A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.486.28

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	855 Ft
5+	661 Ft
10+	629 Ft
20+	608 Ft
50+	586 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
On request
