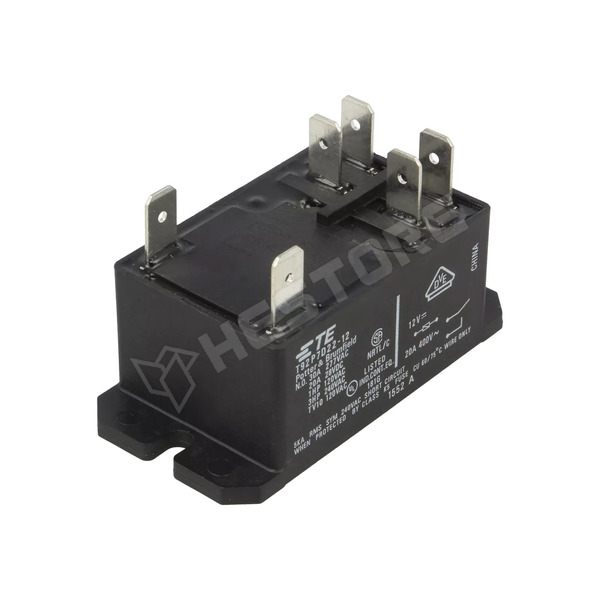

T92P7D22-12

Relay, DPST-NO, 12V DC, 30A / 277V AC, 20A / 28V DC

Manufacturer partno	6-1393211-9
RoHS	yes
Manufacturer	TE Connectivity
Series	T92
Mounting	for panel mounting
Operating temperature	-40...85°C
Body dimensions	65.85x34.54x26.42mm
Leads dimensions	6.35x0.8mm
Leads	coupler, connectors
Mechanical durability	5000000cycles
Contact material	AgCdO
Contacts configuration	DPST-NO
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	30A
Switched voltage	max. 28V DC, max. 600V AC
Relay variant	power
Coil resistance	86Ω
Coil power consumption	1.7W
DC contacts rating @R	20A / 28V DC
AC contacts rating @R	30A / 277V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.486.22

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	7 629 Ft
5+	7 157 Ft
10+	7 014 Ft
20+	6 882 Ft
50+	6 694 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 2500
