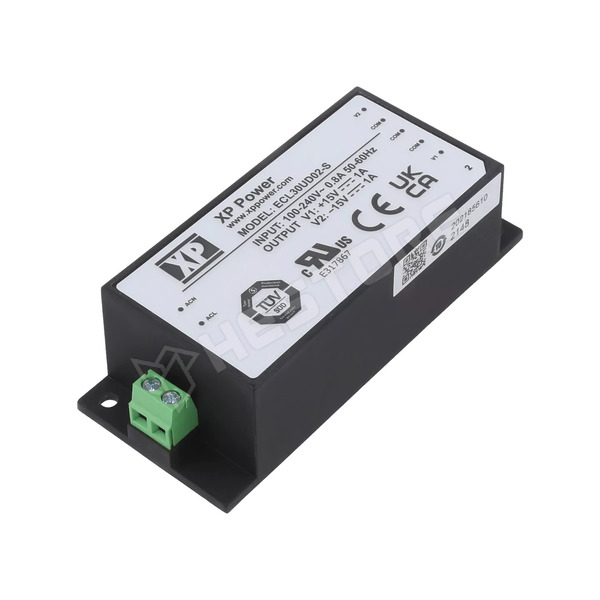

ECL30UD02-S

Power supply, switched-mode, 15V DC, -15V DC, 1A, 30W, for DIN rail mounting

Manufacturer partno	ECL30UD02-S
RoHS	yes
Manufacturer	XP POWER
Power	30W
Output voltage	15V DC
Series	ECL
Mounting	for DIN rail mounting
Operating temperature	-20...70°C
Body dimensions	96x40x28.5mm
Supply voltage	85...264V AC, 120...370V DC
Output current	1A
Type of power supply	switched-mode
Kind of power supply	mounting
Electrical connection	screw terminals
Protection	short circuit protection, anti-overload, anti-overvoltage
Number of outputs	2
Body dimensions	96x40x28.5mm
Efficiency	83%
Insulation voltage	3kV
Output voltage 2	-15V DC
Output current 2	1A
Switching frequency	70kHz
Power consumption without load	<0.3W
