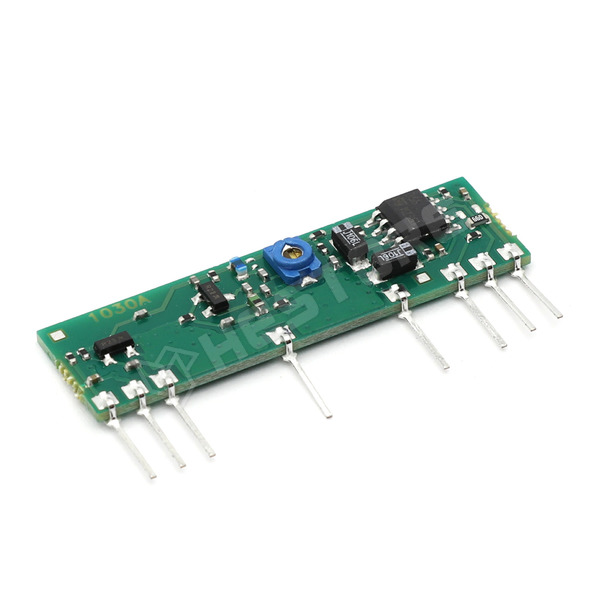

AC-RX2-CS

RF receiver module, AM, ASK, 433.92MHz, -106dBm, 5V DC

Manufacturer partno	AC-RX2-CS
RoHS	yes
Manufacturer	AUREL
Frequency	433.92MHz
Supply voltage	5V DC
Dimensions	38.1x12.3x5.5mm
Type of communications module	RF
Kind of modulation	ASK, AM
Receiver sensitivity	-106dBm
Communications modules features	wide band
Modul fajtája	AM receiver
Kind of module	AM receiver
Current consumption	2.5mA

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.486.04

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 692 Ft
5+	1 463 Ft
10+	1 418 Ft
20+	1 383 Ft
50+	1 340 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
3 workdays	> 350
