5840-3650-12V-160RPM

Name: 5840-3650-12V-160RPM
Brand: HESTORE
SKU: 100.485.96
Availability: InStock

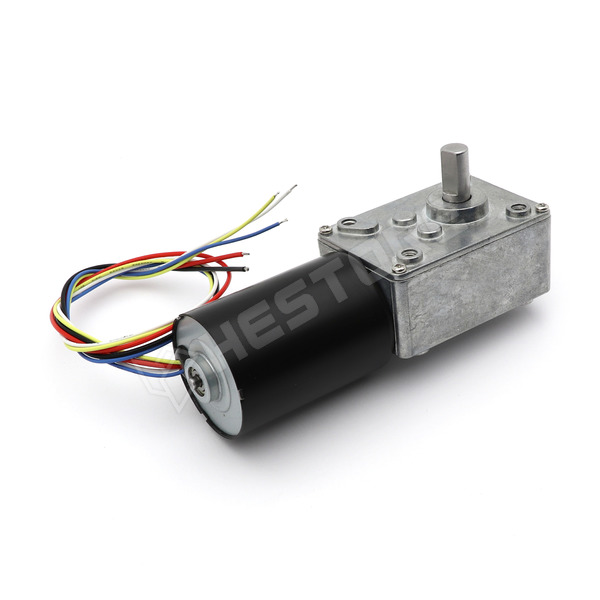

DC gear motor, 12V, 160RPM, with HALL sensor and PWM control

Connection:
Red: VCC
Black: GND
White: Direction of rotation switch - not connected: CCW, connected to GND: CW
Yellow: HALL sensor output - 6 square signals / revolution
Blue: Speed adjustment - 5V PWM 0...100%

Supply voltage	12V DC
Shaft surface	D spring
Mechanical rotation angle	360°
Quiescent current	300mA
Motor type	DC
Nominal rotational speed	160RPM
Shaft diameter	8mm
Kétoldalas tengely	no
Fogaskerék anyaga	metal

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.485.96

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	14 091 Ft
5+	13 354 Ft
10+	13 105 Ft
20+	12 867 Ft
50+	12 519 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
10-15 workdays	> 2000
