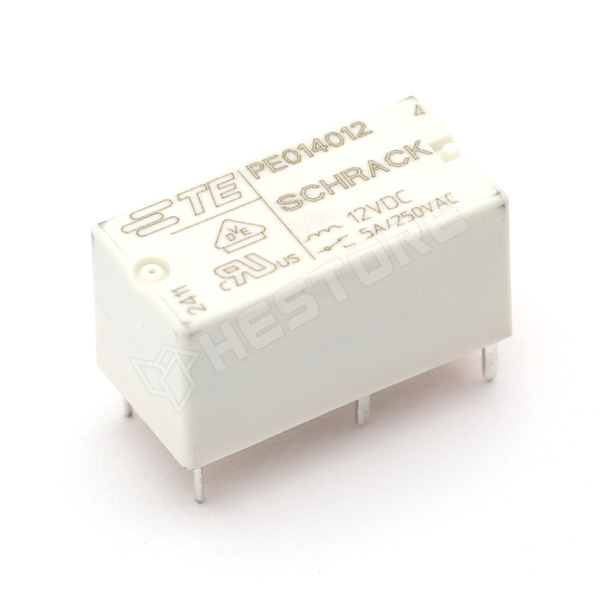

PE014012

Relay, SPDT, 12V DC, 5A / 250V AC, 5A / 30V DC

Manufacturer partno	PE014012
RoHS	yes
Manufacturer	TE Connectivity
Series	PE
Mounting	PCB
Terminal pitch	7.62mm
Operating temperature	-40...85°C
Body dimensions	20x10x10mm
Body dimensions	20x10x10mm
Mechanical durability	150000000 cycles
Contact material	AgNi 90/10
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	5A
Switched voltage	max. 300V DC, max. 440V AC
Relay variant	miniature
Coil resistance	685Ω
Operate time	5ms
Release time	2ms
Coil power consumption	200mW
Coil current	17.5mA
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	5A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.482.19

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	846 Ft
5+	674 Ft
10+	644 Ft
20+	623 Ft
50+	601 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
3 workdays	> 25000
