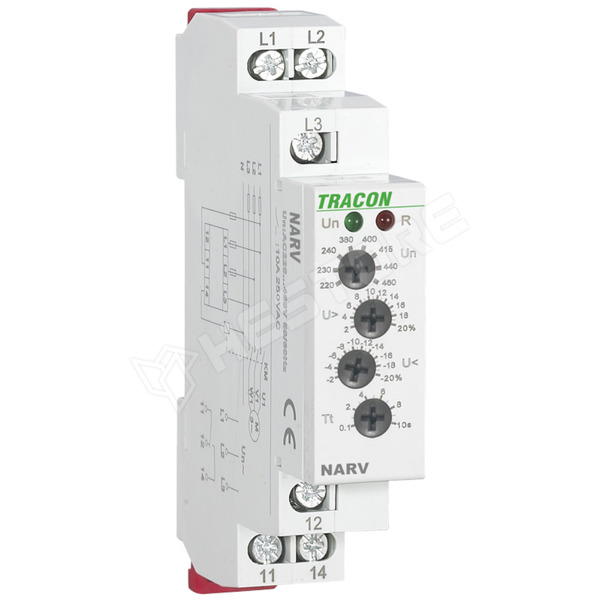

NARV

Voltage monitoring relay, 3 phases, 220...460V AC, Umin / Umax: ±2...±20%, t:0.1...10s, Asymm: 8%, 230V AC / 10A

Manufacturer	TRACON
Mounting	DIN
Operating temperature	-20...55°C
Body dimensions	90 x 64 x 18mm
Leads	screw terminals
Type of module	voltage monitoring relay
IP rating	IP20
Input voltage tolerance	±2...20%
Controlled parameter	voltage growth, phase failure, too low voltage
Kind of output 1	SPDT
Output 1 electrical parameters	230V AC / 10A
Three-phase power supply voltages range	3 x 220...460V AC
Power-off delay	0.1...10s

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.482.01

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	13 554 Ft
5+	13 064 Ft
10+	12 822 Ft
20+	12 590 Ft
50+	12 250 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 1
