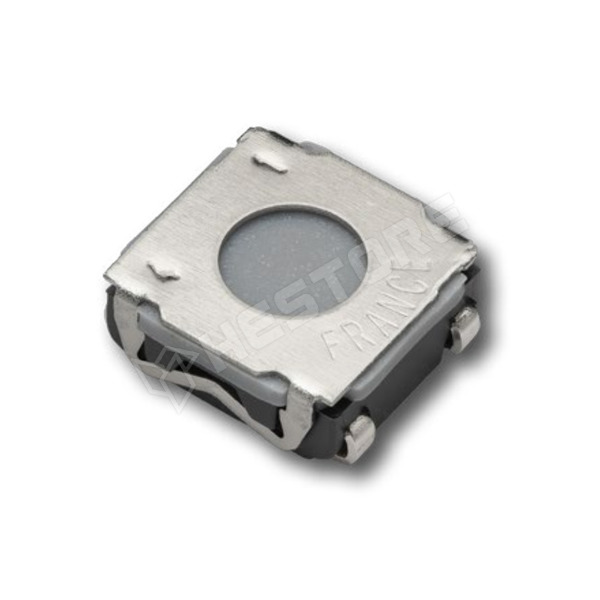

KSC121J LFS

Tactile switch, SPST-NO, SMT, 6.2 x 6.2mm, 2.5mm

Manufacturer partno	KSC121J LFS
RoHS	yes
Manufacturer	C&K
Series	KSC
Mounting	SMT
Operating temperature	-40...85°C
Body dimensions	6.2 x 6.2mm
Contact plating	silver plated
Illumination	none
Min. insulation resistance	10MΩ
IP rating	IP67
Mechanical durability	200000 cycles
Type of switch	microswitch TACT
Stable positions number	1
Number of positions	2
Switching method	OFF-(ON)
Contacts configuration	SPST-NO
Operating Force	1.8N
Max. contact resistance:	100mΩ
Button height	2.5mm
Button shape	round
DC contacts rating @R	0.05A / 32V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.481.77

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	252 Ft
5+	157 Ft
10+	134 Ft
20+	122 Ft
50+	113 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 20
3 workdays	> 250
