Supply voltage: 24V DC
Output: Switched power output
The module has common GND potentials (3 common GND terminals)
Terminals: 6x bare wire AWG22, 600V, 80mm
Maximum output power: 240W / 10A

Temperature sensor type: NTC 10k B3435
Temperature measurement range: -50...120°C
Temperature measurement accuracy: ±0.1°C
Thermometer sensor length: 2 x 1m

Dimensions: 75 x 55 x 31mm
Mounting hole distance: 87.5mm
Mounting hole diameter: Ø3.8mm

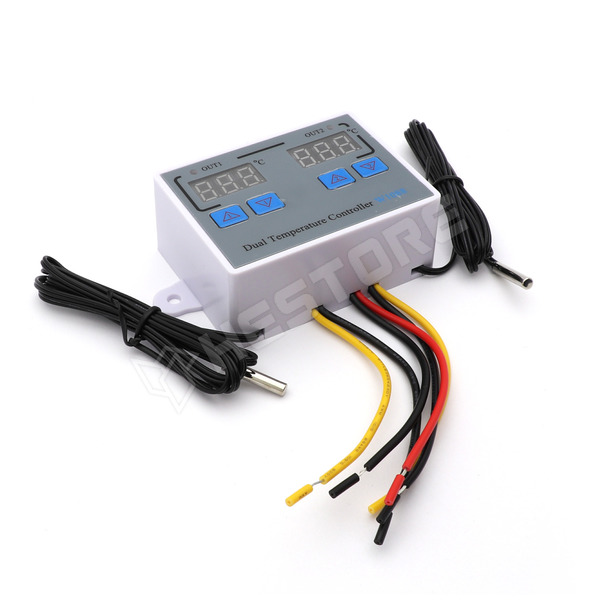

The product has two separate temperature probes.
The current temperature values ​​are displayed by two separate 3-digit 7-segment LED displays.
The switch-on and switch-off thresholds can be set using the up and down arrow buttons below the displays.

UP arrow short press: current switch-on value

DOWN arrow short press: current switch-off value

UP arrow long press: switch-on value can be set (flashing)

DOWN arrow long press: switch-off value can be set (flashing)

If no action is taken, the set value is saved and the default value is returned.
(The threshold setting can only be entered by long pressing in the default position. If you have pressed the button briefly, you must wait until it returns to the temperature display default position, and only then can you enter the setting by long pressing)
