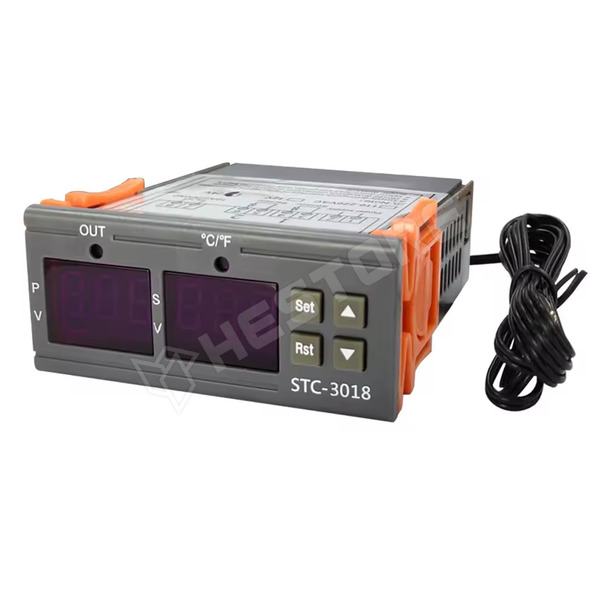

STC3018-24V
Temperature controller, cooling-heating mode, 24V, relay contact output, 10A/240V
Supply voltage: 24V DC
Power consumption: <3W
Output: Relay contact 10A/240V
Terminals: Power and Out: 2 x 2p 5.08mm screw terminal
Display: Dual 3-digit 7-segment LED display red/blue
Sensor: NTC 10k, Ø4 x 20mm, waterproof
Sensor cable length: 1m
Temperature measurement range: -55...120°C
Accuracy: ±1°C
Resolution: 0.1°C
Material: ABS
Dimensions: 75 x 34.5 x 85mm
Installation opening size: 71 x 29mm
Installation thickness: 0...16mm
Current measured temperature: left display / Red
Set temperature value: right display / Blue
Short press of the SET button set the desired temperature value.
Long press the SET button to enter the function menu:
F0: Heating and Cooling mode
F1: Hysteresis (0.2...10°C)
F2: High temperature alarm (-50...120°C)
F3: Low temperature alarm (-50...120°C)
F4: Temperature calibration (-10...10°C)
F5: Switch delay (0...60min)
F6: Unit change °C/F
Exit by pressing the RST button.
The device can be turned on/off by pressing and holding RST (released when the relay is turned off).
Power consumption: <3W
Output: Relay contact 10A/240V
Terminals: Power and Out: 2 x 2p 5.08mm screw terminal
Display: Dual 3-digit 7-segment LED display red/blue
Sensor: NTC 10k, Ø4 x 20mm, waterproof
Sensor cable length: 1m
Temperature measurement range: -55...120°C
Accuracy: ±1°C
Resolution: 0.1°C
Material: ABS
Dimensions: 75 x 34.5 x 85mm
Installation opening size: 71 x 29mm
Installation thickness: 0...16mm
Current measured temperature: left display / Red
Set temperature value: right display / Blue
Short press of the SET button set the desired temperature value.
Long press the SET button to enter the function menu:
F0: Heating and Cooling mode
F1: Hysteresis (0.2...10°C)
F2: High temperature alarm (-50...120°C)
F3: Low temperature alarm (-50...120°C)
F4: Temperature calibration (-10...10°C)
F5: Switch delay (0...60min)
F6: Unit change °C/F
Exit by pressing the RST button.
The device can be turned on/off by pressing and holding RST (released when the relay is turned off).
