V2PWM-0-5_0-10

Name: V2PWM-0-5_0-10
Brand: HESTORE
SKU: 100.480.90
Availability: InStock

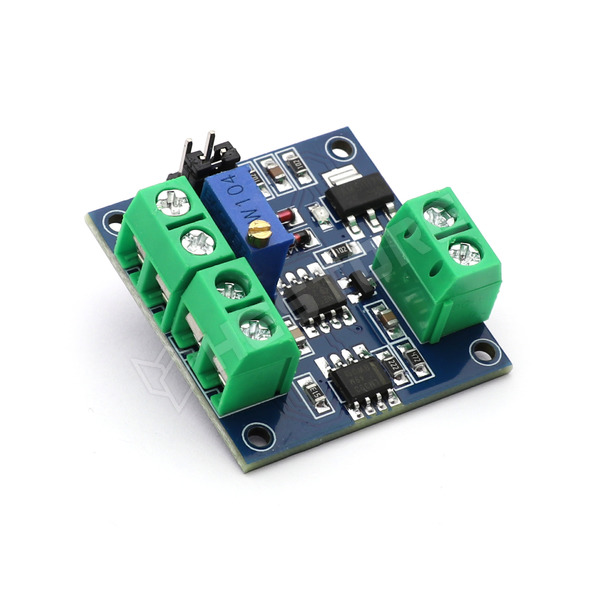

Voltage-PWM converter module, 0...5V or 0...10V

The module changes the duty cycle of the output PWM signal in proportion to the input voltage.

Supply voltage: 6.5...12V DC
PWM frequency range: 40kHz
Terminals: 5.08mm screw terminals, 3x2pin
Dimensions: 32 x 30.5 x 14mm
Mounting hole spacing: 27 x 26mm
Mounting hole diameter: Ø2.1mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.480.90
