XY-MD02

Name: XY-MD02
Brand: HESTORE
SKU: 100.480.44
Availability: InStock

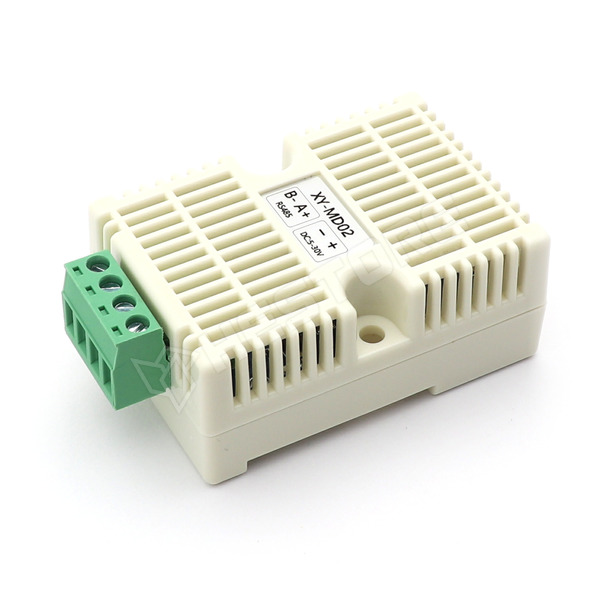

SHT40 temperature and humidity measuring module, RS485, Modbus, boxed, DIN rail

Supply voltage: 5...30V DC
Power consumption: <0.2W
Communication protocol: Modbus RTU
Communication address: 1...247 (default: 1)

Temperature measurement range: -40...60°C
Temperature measurement accuracy: ±0.5°C
Temperature measurement resolution: 0.1°C

Humidity measurement range: 0...80%RH
Humidity measurement accuracy: ±3%RH
Humidity measurement resolution: 0.1%RH

Connector: 5.08mm push-on terminal block (included)

Operating temperature: -40...85°C
Dimensions: 65 x 46 x 28.5mm
Mounting hole distance: 37.5mm
Mounting hole diameter: Ø4.2mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.480.44
