SHT30-M

Name: SHT30-M
Brand: HESTORE
SKU: 100.480.38
Availability: InStock

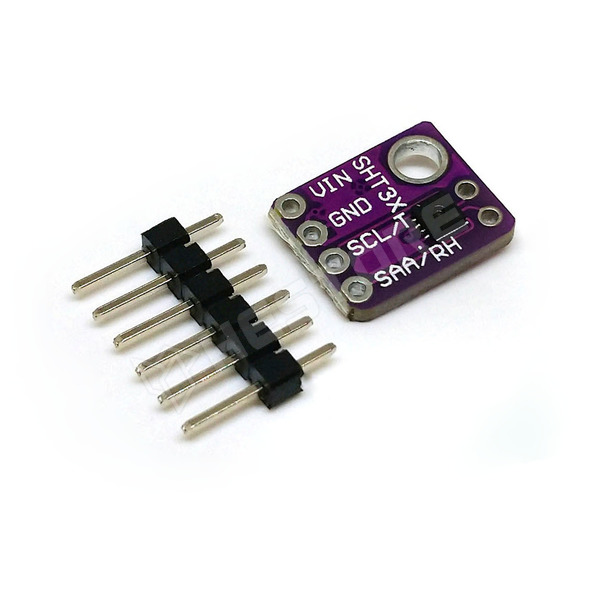

SHT30 based temperature and humidity measurement module, I2C

Supply voltage: 2.15...5.5V DC
Current consumption: 2 μA in standby mode, up to 1.5 mA during measurement
Measurement time: 2.5...15ms
Error: ±0.3°C, ±2% humidity
Temperature measurement range: -40...125°C
Humidity measurement range: 0...90%
Interface: I2C
Maximum data transfer rate: 1MHz;
Resolution: 0.015°C, 0.01%RH
Dimensions: 10.5 × 13 × 3.2 mm
Mounting hole diameter: Ø3mm
Terminals: 2.54mm pin row (included)
Connection:
- I2C(VIN, GND, SCL,SDA)
- AL (ALERT interrupt output)
- AD (ADDRESS address selector)

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.480.38

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 285 Ft
5+	1 073 Ft
10+	1 035 Ft
20+	1 007 Ft
50+	974 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 15
10-15 workdays	> 2000
