DIY-LED-MX

Name: DIY-LED-MX
Brand: HESTORE
SKU: 100.480.32
Availability: InStock

Light show, 9x9 LED matrix, 4.5...9VDC

This kit allows you to build a 9x9 LED matrix light show. The light can be moved along the X, Y, XY axes, and the direction of movement can be controlled with the buttons. The speed of the light movement can also be adjusted on the X and Y axes, which results in various effects.
It is based on two 4017 counters (X and Y axes), each of which is clocked by a 555 timer circuit.

Supply voltage: 4.5...9V DC
Current consumption: 15mA
Dimensions: 97 x 73mm

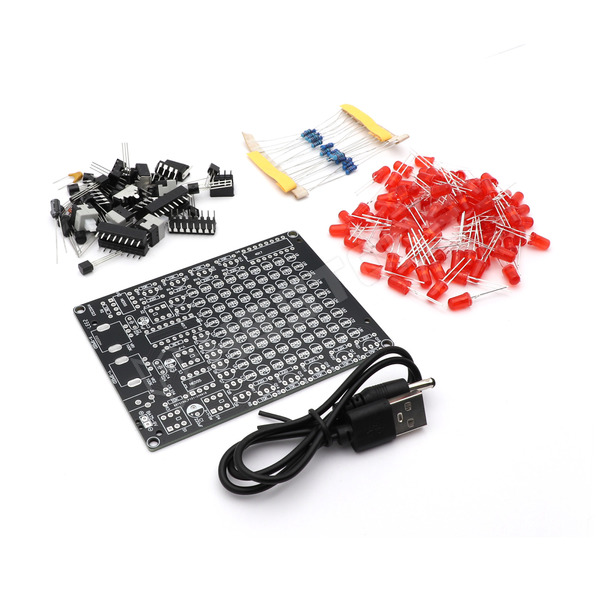

Package contents:
- 1pc PCB
- 1pc DC socket
- 1pc USB-DC plug cable (40cm)
- 2pcs Potentiometer (RV09-100k)
- 4pcs pushbutton switch
- 2pcs 555 IC + socket
- 2pcs 4017 IC + socket
- 18pcs transistor (S9014)
- 2pcs ceramic capacitor (220nF)
- 1pc ceramic capacitor (100nF)
- 1pc electrolytic capacitor (220μF)
- 2pcs electrolytic capacitor (1μF)
- 1pc 3.3kΩ resistor
- 9pcs 220Ω resistor
- 11pcs 10kΩ resistor
- 81pcs LED 5mm red

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.480.32
