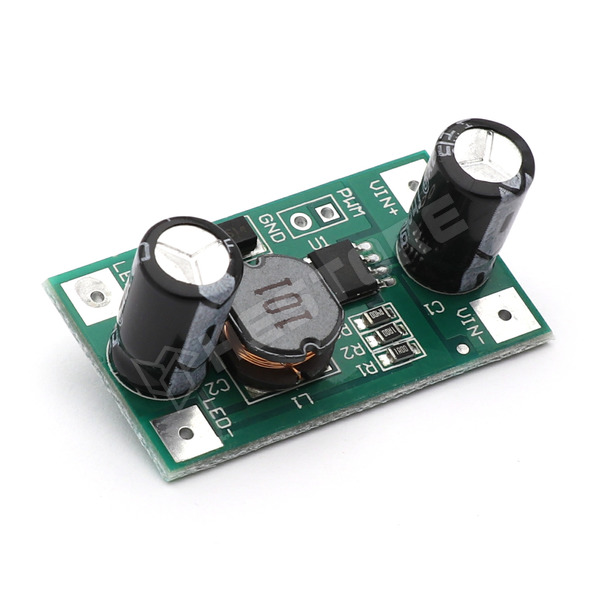

LED-DRV-3W
3W LED driver module, constant current, 700mA
Tips!
Without load, the output voltage appears close to the input voltage, so only apply power to the input when the output is unloaded. Otherwise, the LED may be damaged!
The module implements constant current LED drive with XL4001.Without load, the output voltage appears close to the input voltage, so only apply power to the input when the output is unloaded. Otherwise, the LED may be damaged!
Input voltage range: 5...30V DC
Output: 700mA ±20mA
In case of multiple LEDs, connect the LEDs in series to the output. (1-10 LEDs)
Protection: Overload, short circuit
Dimensions: 20 x 36.5 x 15mm
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.480.28
Quantity (pcs):
Unit price excl. VAT
| 1+ | 699 Ft |
|---|---|
| 5+ | 510 Ft |
| 10+ | 481 Ft |
| 20+ | 463 Ft |
| 50+ | 445 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 5 |
| 10-15 workdays | > 2000 |
