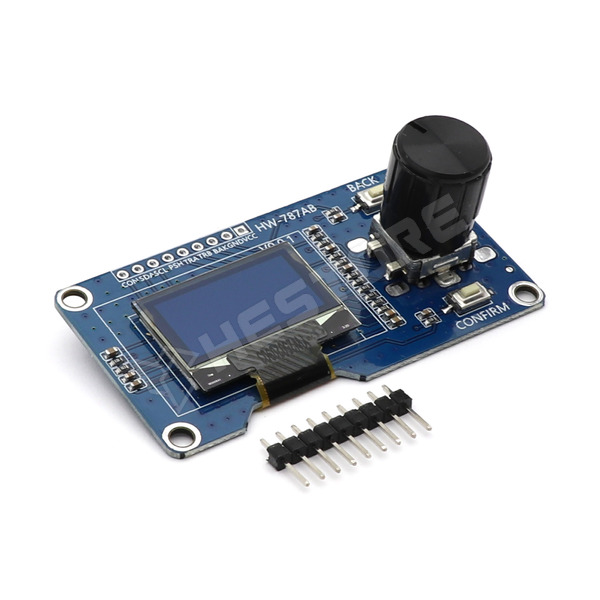

FRONT-ROT-OLED096
Front panel control module, with 0.96inch OLED display, rotary encoder, 2 buttons, I2C
Power supply: 3.3V DC
Display: 0.96 inch OLED white
Resolution 128x64 px
OLED Driver: SSD1306
I2C address: 0x3C
Rotary encoder: EC11, 20 pulses, with push button
2 push buttons: BACK and CONFIRM
The push buttons (including the rotary) are equipped with a 10k pull-up resistor and a de-spin capacitor.
Pinout: 2.54mm pin row (included)
Dimensions: 65 x 35mm
Hole spacing: 59.5mm and 29.5mm
Hole diameter: Ø3.2mm
Display: 0.96 inch OLED white
Resolution 128x64 px
OLED Driver: SSD1306
I2C address: 0x3C
Rotary encoder: EC11, 20 pulses, with push button
2 push buttons: BACK and CONFIRM
The push buttons (including the rotary) are equipped with a 10k pull-up resistor and a de-spin capacitor.
Pinout: 2.54mm pin row (included)
Dimensions: 65 x 35mm
Hole spacing: 59.5mm and 29.5mm
Hole diameter: Ø3.2mm
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.480.24
Quantity (pcs):
Unit price excl. VAT
| 1+ | 1 938 Ft |
|---|---|
| 5+ | 1 739 Ft |
| 10+ | 1 690 Ft |
| 20+ | 1 651 Ft |
| 50+ | 1 602 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 25 |
| 10-15 workdays | > 2000 |
