VM028-100-3-BL

Name: VM028-100-3-BL
Brand: HESTORE
SKU: 100.480.14
Availability: InStock

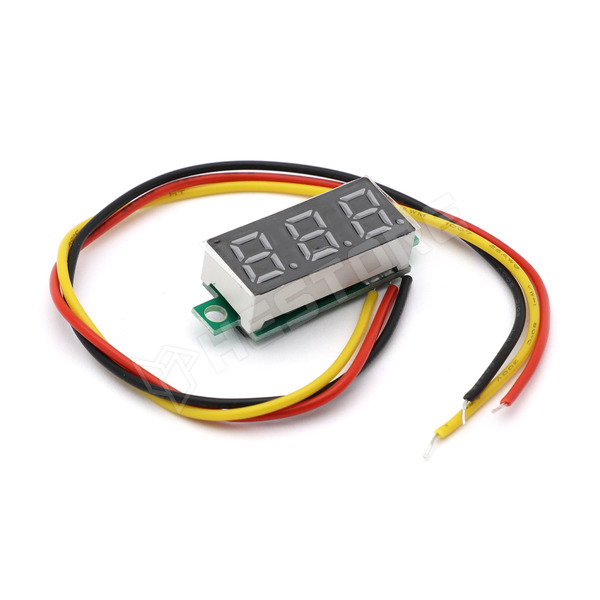

Voltage meter, 0.28" 3 digit display, supply voltage: 4.5...30V DC, measured voltage: 0...100V DC, blue

Connection:
- Black wire: GND
- Red wire: voltage meter positive supply: 4.5...30V DC
- Yellow wire: measured voltage positive: 0...100V DC

Calibration:
The potentiometer on the back of the module can be used to calibrate the measured voltage.

Operating voltage	4.5...30V DC
Operating temperature	-10...65°C
Dimensions	30.35 x 10.5 x 10mm
Leads	3 leads
Type of display used	7-segment, 0.28"
Supply current	20mA
DC voltage measuring range	0...100V DC
Display color	blue

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.480.14

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	502 Ft
5+	338 Ft
10+	313 Ft
20+	298 Ft
50+	285 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 15
10-15 workdays	> 2000
