GY-31

Name: GY-31
Brand: HESTORE
SKU: 100.479.96
Availability: InStock

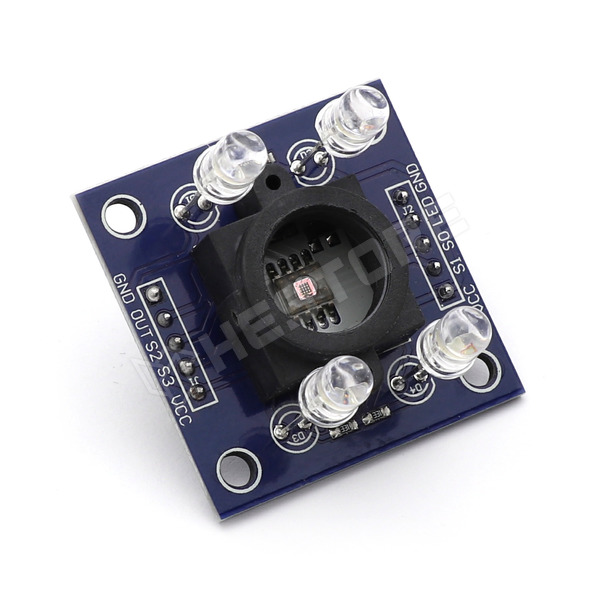

TCS230, TCS3200 color detection sensor module

• Supply voltage: 3...5V DC
• Output signal: Frequency (0...5V level)
• Operating principle: 8×8 photodiode matrix (16× red, 16× green, 16× blue, 16× unfiltered), built-in current-frequency converter
• Color detection: Selectable on pins S2 and S3 (red, green, blue, transparent)
• Frequency division: Adjustable on pins S0 and S1 (100%, 20%, 2%, off)
• Illumination: Built-in high-brightness white LEDs
• Best detection distance: approx. 10mm
• Nonlinearity: typ. 0.2% (up to 50kHz)
• Temperature coefficient: 200ppm/°C
• Output drive: TTL/CMOS compatible, suitable for direct microcontroller connection

• Operating temperature: 0...70°C
• Dimensions: 34 x 34mm
• Application: static color detection, robotics, quality control, object recognition

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.479.96

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 854 Ft
5+	1 619 Ft
10+	1 571 Ft
20+	1 533 Ft
50+	1 487 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
10-15 workdays	> 2000
