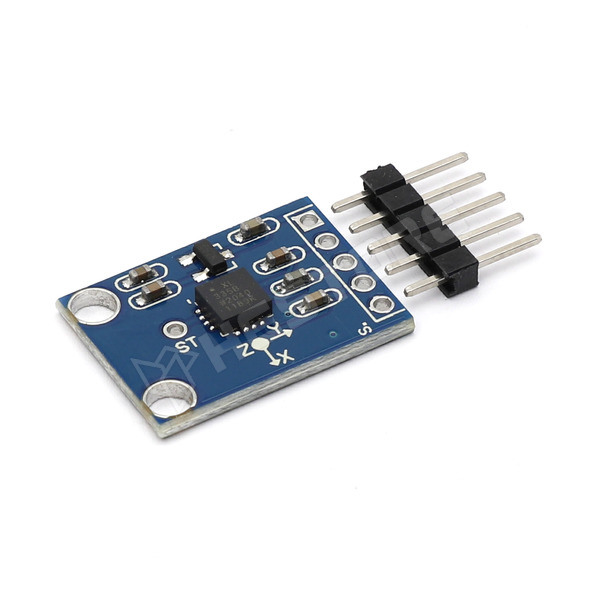

GY-61
ADXL335 based 3-axis accelerometer sensor module
Supply voltage: 1.8...3.6V DC
Current consumption: 350μA
Measuring range: ±3.6g
Sensitivity: 270...330mV/g
Terminals: 2.54mm pin row (included, not soldered)
Dimensions: 15 x 20.5mm
Mounting hole distance: 11mm
Mounting hole diameter: Ø3.2mm
Operating temperature: -40...85°C
Current consumption: 350μA
Measuring range: ±3.6g
Sensitivity: 270...330mV/g
Terminals: 2.54mm pin row (included, not soldered)
Dimensions: 15 x 20.5mm
Mounting hole distance: 11mm
Mounting hole diameter: Ø3.2mm
Operating temperature: -40...85°C
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.479.93
Quantity (pcs):
Unit price excl. VAT
| 1+ | 1 908 Ft |
|---|---|
| 5+ | 1 670 Ft |
| 10+ | 1 621 Ft |
| 20+ | 1 583 Ft |
| 50+ | 1 535 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 2 |
| 10-15 workdays | > 2000 |
